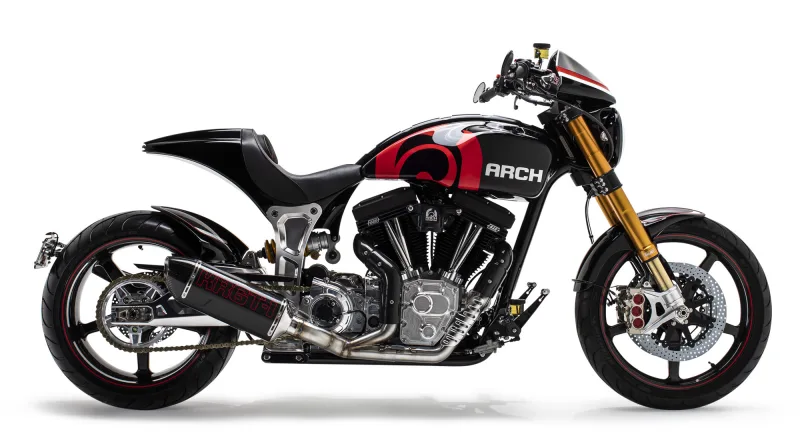

Arch Krgt 1 - 2026 Specifications and Reviews
The 2026 Arch KRGT-1 is a premium American sport cruiser powered by a 2032cc S&S V-Twin producing 120 horsepower and 156.4 Nm of torque. Built for riders seeking high-end craftsmanship and raw V-Twin character, it combines aggressive styling with accessible handling and a six-speed transmission. Known for its bespoke design and hand-assembled quality, the KRGT-1 appeals to discerning enthusiasts prioritizing exclusivity and performance.
2026
General information | |
| Color Options | Black/red/white, blue/white, red/white |
| Category | Sport |
| Model | Arch KRGT-1 |
Engine and Transmission Specifications | |
| Starting | Electric |
| Emission Details | CARB/EPA compliant. Euro 4. |
| Clutch | Dry |
| Final Drive | Chain (final drive) |
| Gearbox | 6-speed |
| Fuel Control | Double Overhead Cams/Twin Cam (DOHC) |
| Induction | Injection |
| Bore x Stroke | 104.8 x 117.5 mm (4.1 x 4.6 inches) |
| Compression Ratio | 10.8:1 |
| Max Torque | 156.4 Nm (15.9 kgf-m or 115.3 ft.lbs) |
| Engine Details | Black S and S 45 degree V-Twin |
| Engine Type | V2, four-stroke |
| Capacity: | 2032.0 ccm (123.99 cubic inches) |
| | |
Physical measures and capacities | |
| Fuel Capacity | 18.93 litres (5.00 US gallons) |
| Wheelbase | 1727 mm (68.0 inches) |
| Seat Height | 706 mm (27.8 inches) If adjustable, lowest setting. |
| Power/Weight Ratio | 0.4439 HP/kg |
| Dry Weight | 270.3 kg (596.0 pounds) |
| | |
Arch Krgt 1 dimensions and frame | |
| Wheels | Carbon fiber 5-spoke wheels. Michelin Commander II tires. |
| Rear Brakes | Single disc. ABS. Four-piston monobloc radial mount caliper. |
| Brake Disc Diameter | 266 mm (10.5 inches) |
| Front Brakes | Double disc. ABS. 6 piston monobloc radial mount calipers. |
| Rear Tyre | 240/40-R18 |
| Front Tyre | 120/70-ZR19 |
| Rear Suspension | Full adjustable ARCH/Öhlins rear shock with reservoir and hydraulic pre-load adjustment |
| Front Suspension | Fully adjustable ARCH/Öhlins FGRT series fork |
| Trail | 127 mm (5.0 inches) |
| Frame | Tubular steel frame with CNC-machined aluminium subframe and fuel cells |
Other specs | |
| Maintenance | Find parts, fluids, filters, maintenance tools and service items on eBay |
| Update specs | Report missing specs or required updates. |
| Comments | US brand. Assembled at ARCH Motorcycle’s Los Angeles facility. |
| Lighting | LED headlight |
| Instruments | Digital instrumentation |
| Rake (fork angle) | 30.0° |
| Exhaust system | Arch 2-into-1 stainless steel. Yoshimura carbon fiber muffler. |
| Output | 120.0 HP (87.6 kW)) |
| Year of manufacture | 2025 |
Performance Profile & Rider Fit
120 hp
Peak Power
3.6s
0-60 mph
Best For
Track30%
City45%
Cornering50%
Daily Riding55%
Touring60%
Passenger55%
Rider Profile
| Best For | Best suited to experienced riders who are comfortable managing a heavy, torque-laden custom cruiser with a long wheelbase and fat rear tire. |
| Purpose | Built as a boutique power-cruiser that blends American V-twin muscle with premium Ohlins suspension and top-shelf brakes for a bold, low-slung boulevard machine. |
| Rider Fit | The low 706mm seat height keeps it accessible, but the 270kg dry weight and stretched-out ergonomics demand solid upper body strength at low speed and in parking maneuvers. |
| Character | A statement bike for riders who want exclusive, hand-built American craftsmanship, aggressive styling, and thumping V-twin torque over outright sportbike agility. |
| Not Ideal For | Not a fit for riders seeking nimble cornering, off-road capability, or a budget-friendly, mass-market cruiser experience. |
Character map is an editorial estimate based on this bike's specifications, not a lab-tested measurement.
