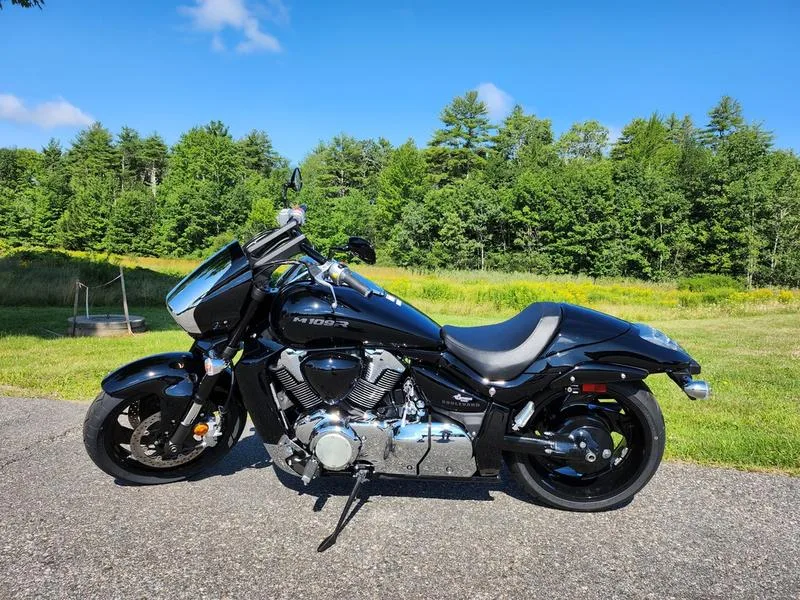

Suzuki Boulevard M109R B O S S - 2024 Specifications and Reviews
No pictures availableGeneral information | |
| Price as new | Do you know this bike?Click here to rate it. We miss 2 votes to show the rating. |
| Type | Custom / cruiser |
| Year of manufacture | 2024 |
| Model name | Suzuki Boulevard M109R B O S S |
Engine and Transmission Specifications | |
| Exhaust system | 2-into-1-into-2 stainless steel blacked-out |
| Driveline | Constant mesh |
| Clutch | Wet multi-plate |
| Transmission type | Shaft drive (cardan) (final drive) |
| Gearbox | 5-speed |
| Cooling system | Liquid |
| Lubrication system | Semi-dry sump |
| Ignition | Electronic ignition |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Fuel system | Injection. Suzuki Dual Throttle Valve system |
| Valves per cylinder | 4 |
| Bore x stroke | 112.0 x 90.5 mm (4.4 x 3.6 inches) |
| Compression | 10.5:1 |
| Torque | 160.0 Nm (16.3 kgf-m or 118.0 ft.lbs) @ 3200 RPM |
| Output | 125.0 HP (91.2 kW)) @ 6200 RPM |
| Engine details | 54-degree V-Twin |
| Type of engine | V2, four-stroke |
| Capacity: | 1783.0 ccm (108.80 cubic inches) |
| | |
Brakes, suspension, Frame and wheels | |
| Rear brakes | Single disc. Single piston |
| Diameter | 310 mm (12.2 inches) |
| Front brakes | Double disc. Dual piston |
| Rear tire | 240/40-R18 |
| Front tire | 130/70-R18 |
| Rear wheel travel | 118 mm (4.6 inches) |
| Rear suspension | Link style, solo shock, coil spring, oil damped |
| Front wheel travel | 130 mm (5.1 inches) |
| Front suspension | Blacked-out, inverted telescopic, coil spring, oil damped |
| Frame type | Double cradle, steel |
Physical measures and capacities | |
| Fuel capacity | 19.50 litres (5.15 US gallons) |
| Wheelbase | 1710 mm (67.3 inches) |
| Ground clearance | 130 mm (5.1 inches) |
| Overall width | 875 mm (34.4 inches) |
| Overall length | 2450 mm (96.5 inches) |
| Overall height | 1130 mm (44.5 inches) |
| Seat height | 705 mm (27.8 inches) If adjustable, lowest setting. |
| Weight incl. oil, gas, etc | 347.0 kg (765.0 pounds) |
Other specs | |
| Update specs | |
| Comments | Solo-seat cover (included) can be quickly swapped for the passenger seat. Blacked-out exhaust system, clutch cover, magneto cover, cylinder head covers, air cleaner cover, and final drive case. |
| Factory warranty | 12 Month Limited Warranty |
| Instruments | Digital tachometer, gear position indicator, and LED indicator lights is integrated into the top of the headlight cowl |
| Starter | Electric |
| Color options | Metallic Triton Blue/Glass Sparkle Black, Candy Daring Red/Glass Sparkle Black |
