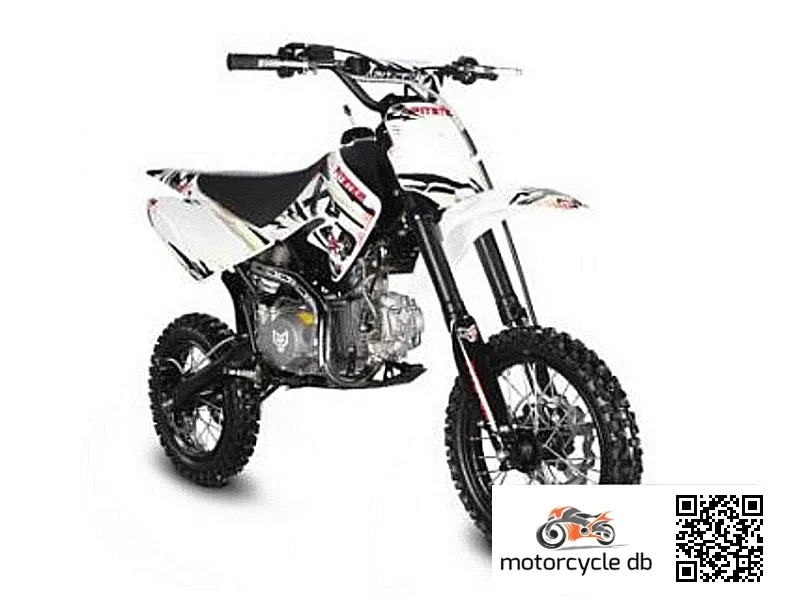

Pitster Pro X5 155 - 2013 Specifications and Reviews
The 2013 Pitster Pro X5 155 is a compact minibike designed for younger riders and beginners seeking an affordable entry into off-road riding. Powered by a reliable 140cc four-stroke engine with a chromoly frame, it delivers manageable performance for learning fundamental dirt bike skills. Known for its durability and value, this model is best suited for recreational trail riding and small-scale racing competition.
2013
General information | |
| Category | Minibike, cross |
| Year | 2013 |
| Model | Pitster Pro X5 155 |
Engine and Transmission Specifications | |
| Exhaust system | FMF and Pro Circuit |
| Clutch | Five plate wet clutch |
| Transmission type,final drive | Chain |
| Gearbox | 4-speed |
| Cooling system | Oil & air |
| Ignition | Outer Rotor w/ CDI |
| Fuel control | SOHC |
| Bore x stroke | 56.0 x 57.0 mm (2.2 x 2.2 inches) |
| Compression | 9.2:1 |
| Engine type | Single cylinder, four-stroke |
| Capacity: | 140.00 ccm (8.54 cubic inches) |
| | |
Brakes, suspension, Frame and wheels | |
| Rear brakes diameter | 190 mm (7.5 inches) |
| Rear brakes | Single disc. Hydraulic. |
| Front brakes diameter | 220 mm (8.7 inches) |
| Front brakes | Single disc. Hydraulic. |
| Rear tyre dimensions | 80/100-12 |
| Front tyre dimensions | 2.50-14 |
| Rear suspension | Mono Shock with preload adjustmen |
| Front suspension | 35mm inverted forks |
| Frame type | Chromoly frame with engine cradle. Subframe: Chromoly Removable. |
Physical measures and capacities | |
| Fuel capacity | 4.92 litres (1.30 gallons) |
| Wheelbase | 1,181 mm (46.5 inches) |
| Ground clearance | 254 mm (10.0 inches) |
| Seat height | 787 mm (31.0 inches) If adjustable, lowest setting. |
| Dry weight | 64.9 kg (143.0 pounds) |
Other specs | |
| Maintenance | Find parts, fluids, filters, maintenance tools and service items on eBay |
| Color options | White |
| Starter | Kick |
Performance Profile & Rider Fit
Best For
Track60%
City10%
Cornering55%
Daily Riding10%
Touring5%
Passenger5%
Rider Profile
| Best For | Best suited to young or beginner riders, and small-statured adults looking for a fun pit-bike style machine, given the tiny 140cc air-cooled motor and mini-bike dimensions. |
| Purpose | Designed purely for casual off-road play, pit-bike track lapping, and learning fundamentals rather than any serious speed or distance riding. |
| Rider Fit | The very low seat height, light dry weight around 65kg, and compact wheelbase make it extremely easy to handle and flick around for smaller or lighter riders. |
| Character | A playful, nimble little cross-style minibike with inverted forks and a mono-shock rear that mimics full-size dirt bike handling in a scaled-down, low-power package. |
| Not Ideal For | Not suitable for taller or heavier adults, highway use, touring, or anyone wanting real straight-line speed or passenger carrying capability. |
Character map is an editorial estimate based on this bike's specifications, not a lab-tested measurement.
