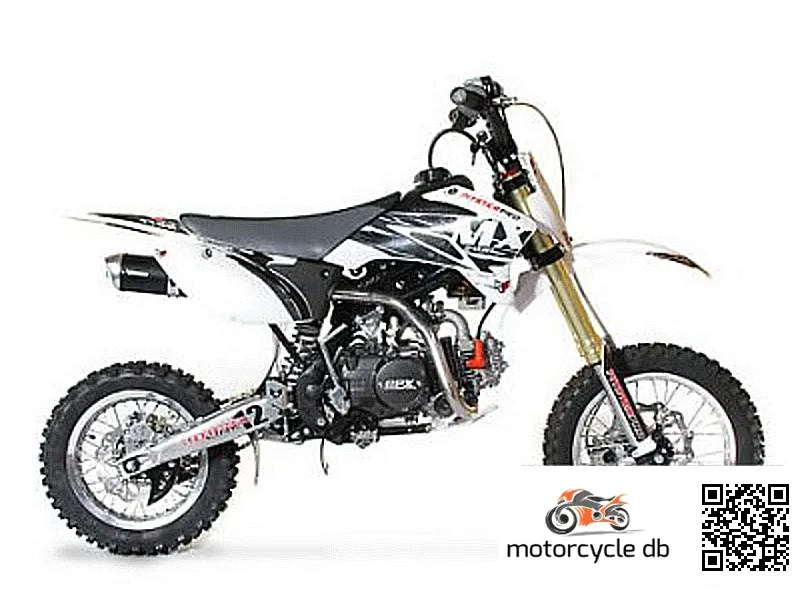

Pitster Pro MX 110R - 2012 Specifications and Reviews
The 2012 Pitster Pro MX 110R is a lightweight minibike designed for young riders and beginners seeking affordable entry into motocross. Its 110cc four-stroke engine delivers manageable power with a 4-speed transmission, making it ideal for learning fundamental riding skills. Known for reliable performance and cost-effectiveness, this model is best suited for practice and recreational riding on small tracks or trails.
2012
General information | |
| Category | Minibike, cross |
| Year | 2012 |
| Model | Pitster Pro MX 110R |
Engine and Transmission Specifications | |
| Exhaust system | FMF Factory 4.1 |
| Clutch | 5 plate wet clutch |
| Transmission type,final drive | Chain |
| Gearbox | 4-speed |
| Cooling system | Air |
| Ignition | Stator/ CDI with lighting coil |
| Fuel control | SOHC |
| Fuel system | Carburettor |
| Bore x stroke | 52.5 x 49.5 mm (2.1 x 1.9 inches) |
| Compression | 9.2:1 |
| Engine type | Single cylinder, four-stroke |
| Capacity: | 110.00 ccm (6.71 cubic inches) |
| | |
Brakes, suspension, Frame and wheels | |
| Wheels | Standard |
| Rear brakes diameter | 190 mm (7.5 inches) |
| Rear brakes | Single disc. W-Style Rotor W/ Floating Caliper |
| Front brakes diameter | 220 mm (8.7 inches) |
| Front brakes | Single disc. W-Style Rotor W/ Floating Caliper |
| Rear tyre dimensions | 1.85-12 |
| Front tyre dimensions | 2.75-14 |
| Rear suspension | Pitster Progressive Link Swingarm w/ Comp. and Rebound Adjustment, Adjustable Spring Preload |
| Front suspension | GPX Moto forks w/ Separate Comp and Reb Adjustment |
| Frame type | Central Double Cradle Chromo W/ Tri Point Mounting, removable footpeg Design, Progressive Link |
Physical measures and capacities | |
| Fuel capacity | 3.80 litres (1.00 gallons) |
| Wheelbase | 1,161 mm (45.7 inches) |
| Ground clearance | 254 mm (10.0 inches) |
| Seat height | 31 mm (1.2 inches) If adjustable, lowest setting. |
| Dry weight | 64.9 kg (143.0 pounds) |
| | |
Other specs | |
| Maintenance | Find parts, fluids, filters, maintenance tools and service items on eBay |
| Color options | White |
| Starter | Electric & kick |
Performance Profile & Rider Fit
Best For
Track60%
City5%
Cornering55%
Daily Riding5%
Touring5%
Passenger0%
Rider Profile
| Best For | This is a pit/minibike aimed at youth riders or small adults with basic to intermediate off-road skills, not seasoned street riders. |
| Purpose | Built purely for recreational off-road cross riding and pit track practice, not for transportation or highway use. |
| Rider Fit | Its tiny 31mm-listed seat height figure (likely a data entry error, realistically closer to a low mini seat height) and sub-65kg dry weight make it suitable for lightweight riders, kids, or smaller-framed adults. |
| Character | A nimble, playful minibike with adjustable suspension and a wet clutch 4-speed gearbox, rewarding riders who enjoy tossing a small machine around dirt tracks. |
| Not Ideal For | Not suitable for taller or heavier adults, highway travel, passengers, or anyone seeking real touring comfort or top-speed performance. |
Character map is an editorial estimate based on this bike's specifications, not a lab-tested measurement.
