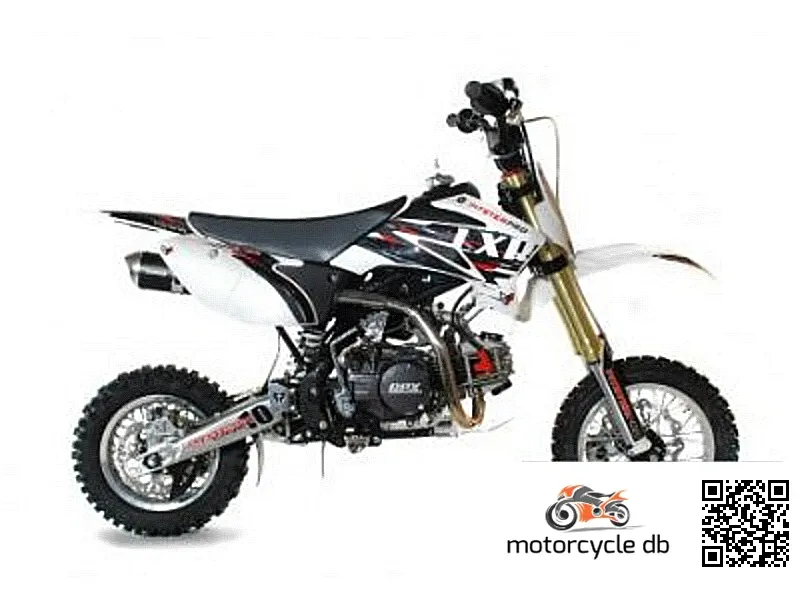

Pitster Pro LXR 155R TEN Pit Bike - 2013 Specifications and Reviews
The 2013 Pitster Pro LXR 155R TEN is a 155cc pit bike designed for young riders and beginners seeking a capable entry-level machine. Featuring a reliable single-cylinder four-stroke engine with a Pro Circuit exhaust system and progressive link suspension geometry, it delivers predictable handling and manageable power delivery. Known for its durable chromoly frame construction and user-friendly performance characteristics, it excels as a training platform for developing fundamental riding skills.
2013
General information | |
| Category | Minibike, cross |
| Year | 2013 |
| Model | Pitster Pro LXR 155R TEN Pit Bike |
| | |
Engine and Transmission Specifications | |
| Exhaust system | Pro Circuit T-4 System |
| Clutch | 5 plate wet clutch |
| Transmission type,final drive | Chain |
| Gearbox | 4-speed |
| Cooling system | Oil & air |
| Ignition | Outer rotor with lighting coil |
| Fuel control | SOHC |
| Bore x stroke | 60.0 x 55.0 mm (2.4 x 2.2 inches) |
| Compression | 10.2:1 |
| Engine type | Single cylinder, four-stroke |
| Capacity: | 155.00 ccm (9.46 cubic inches) |
Brakes, suspension, Frame and wheels | |
| Wheels | Standard |
| Rear brakes diameter | 190 mm (7.5 inches) |
| Rear brakes | Single disc. Floating disc. |
| Front brakes diameter | 220 mm (8.7 inches) |
| Front brakes | Single disc. Floating discs. |
| Rear tyre dimensions | 3.00-10 |
| Front tyre dimensions | 2.75-14 |
| Rear suspension | Pitster Progressive Link Swingarm w/ high and low speed Comp. and Rebound Adjustment, Adjustable Spring Preload |
| Front suspension | Black GPX Moto forks w/ Separate Comp and Reb Adjustment |
| Frame type | Central Double Cradle Chromo W/ Tri Point Mounting, removable footpeg Design, Progressive Link. Subframe: Chromo Removable W/ Integrated Grab Handle. |
Physical measures and capacities | |
| Fuel capacity | 3.80 litres (1.00 gallons) |
| Wheelbase | 1,143 mm (45.0 inches) |
| Ground clearance | 229 mm (9.0 inches) |
| Seat height | 737 mm (29.0 inches) If adjustable, lowest setting. |
| Dry weight | 63.5 kg (140.0 pounds) |
| | |
Other specs | |
| Maintenance | Find parts, fluids, filters, maintenance tools and service items on eBay |
| Color options | White |
| Starter | Kick |
Performance Profile & Rider Fit
Best For
Track55%
City25%
Cornering70%
Daily Riding15%
Touring5%
Passenger5%
Rider Profile
| Best For | This pit bike suits beginners and playful experienced riders alike, since its small size and light weight make mistakes easy to recover from. |
| Purpose | Built for pit bike racing, backyard trails, and supermoto-style track fun rather than any kind of real-world transportation. |
| Rider Fit | Its tiny 737 mm seat height and 63.5 kg dry weight make it extremely approachable for shorter or lighter riders, though tall adults will feel cramped. |
| Character | A featherweight, flickable minibike with race-oriented suspension and brakes that reward aggressive, playful riding over long distances. |
| Not Ideal For | Not suitable for highway travel, touring, carrying a passenger, or anyone expecting meaningful top-speed performance. |
Character map is an editorial estimate based on this bike's specifications, not a lab-tested measurement.
