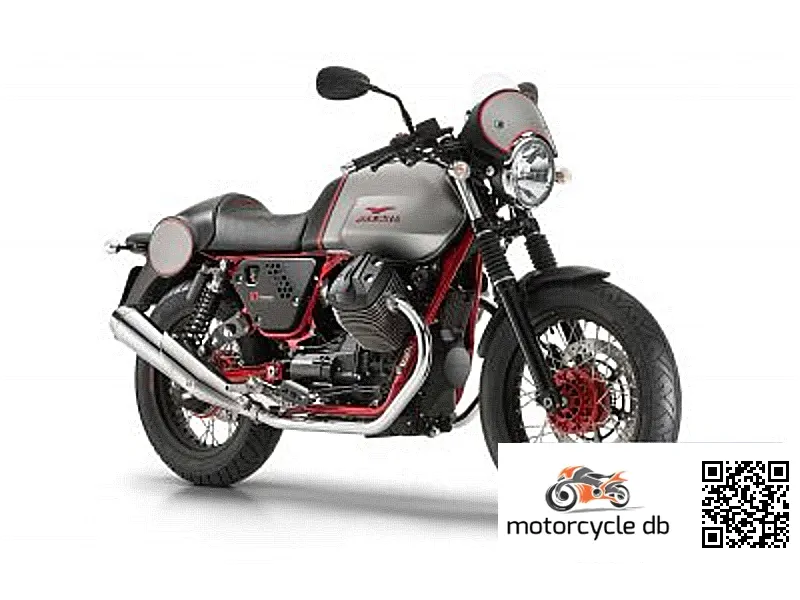

Moto Guzzi V7 II Racer ABS - 2016 Specifications and Reviews
The 2016 Moto Guzzi V7 II Racer ABS suits retro-styled motorcycle enthusiasts seeking classic Italian character with modern safety. Known for its lightweight 190kg frame, switchable ABS braking, and authentic air-cooled V-twin engine, it delivers accessible performance with genuine vintage appeal and reliable handling for both commuting and weekend rides.
2016
General information | |
| Category | Classic |
| Year | 2016 |
| Model | Moto Guzzi V7 II Racer ABS |
Engine and Transmission Specifications | |
| Exhaust system | Three-way catalytic converter with double lambda probe |
| Driveline | CA.R.C. Compact Reactive Shaft Drive |
| Clutch | Dry single plate with flexible couplings |
| Transmission type,final drive | Shaft drive (cardan) |
| Gearbox | 5-speed |
| Cooling system | Air |
| Lubrication system | Forced circulation with lobe pump - circuit capacity: 1.78 Kg |
| Fuel system | Injection. Weber-Marelli |
| Valves per cylinder | 2 |
| Torque | 57.90 Nm (5.9 kgf-m or 42.7 ft.lbs) @ 5000 RPM |
| Power | 48.00 HP (35.0 kW) @ 6200 RPM |
| Engine details | 90° V-twin |
| Engine type | V2, four-stroke |
| | |
Brakes, suspension, Frame and wheels | |
| Wheels | Black anodized aluminum, spoked wheels |
| Rear brakes diameter | 250 mm (9.8 inches) |
| Rear brakes | Single disc. ABS. Floating disc. Two-piston calipers. |
| Front brakes diameter | 320 mm (12.6 inches) |
| Front brakes | Single disc. ABS. Brembo caliper with 4 differentiated pistons |
| Rear tyre | 130/80-17 |
| Front tyre | 100/90-18 |
| Rear wheel travel | 96 mm (3.8 inches) |
| Rear Suspension | Die-cast light alloy swing arm with 2 fully adjustable Bitubo shock absorbers |
| Front wheel travel | 130 mm (5.1 inches) |
| Front Suspension | Telescopic hydraulic fork with 40 mm stanchions |
| Frame type | Double cradle tubular frame in ALS steel with detachable rear subframe |
| | |
Physical measures and capacities | |
| Reserve fuel capacity | 2.50 litres (0.66 gallons) |
| Fuel capacity | 22.00 litres (5.81 gallons) |
| Wheelbase | 1,449 mm (57.0 inches) |
| Ground clearance | 179 mm (7.0 inches) |
| Overall width | 800 mm (31.5 inches) |
| Overall length | 2,203 mm (86.7 inches) |
| Overall height | 1,115 mm (43.9 inches) |
| Seat height | 790 mm (31.1 inches) If adjustable, lowest setting. |
| Weight incl. oil, gas, etc | 190.0 kg (418.9 pounds) |
Other specs | |
| Maintenance | Find parts, fluids, filters, maintenance tools and service items on eBay |
| Comments | Switchable ABS. |
| Factory warranty | Two-year manufacturer’s warranty and roadside assistance for one year |
| Starter | Electric |
| Color options | Silver/red |
Performance Profile & Rider Fit
48 hp
Peak Power
6.5s
0-60 mph
Best For
Track15%
City65%
Cornering55%
Daily Riding65%
Touring45%
Passenger40%
Rider Profile
| Best For | Suits newer and experienced riders alike thanks to modest power and predictable, easygoing manners. |
| Purpose | Built for relaxed classic-styled cruising and café-racer posing rather than outright performance. |
| Rider Fit | Low seat height and light weight make it accessible to shorter or less physically strong riders. |
| Character | A charming retro air-cooled V-twin with shaft drive that rewards a relaxed, low-revving riding style over aggressive throttle use. |
| Not Ideal For | Not for riders seeking high-speed thrills, long-distance touring comfort, or any off-road capability. |
Character map is an editorial estimate based on this bike's specifications, not a lab-tested measurement.
