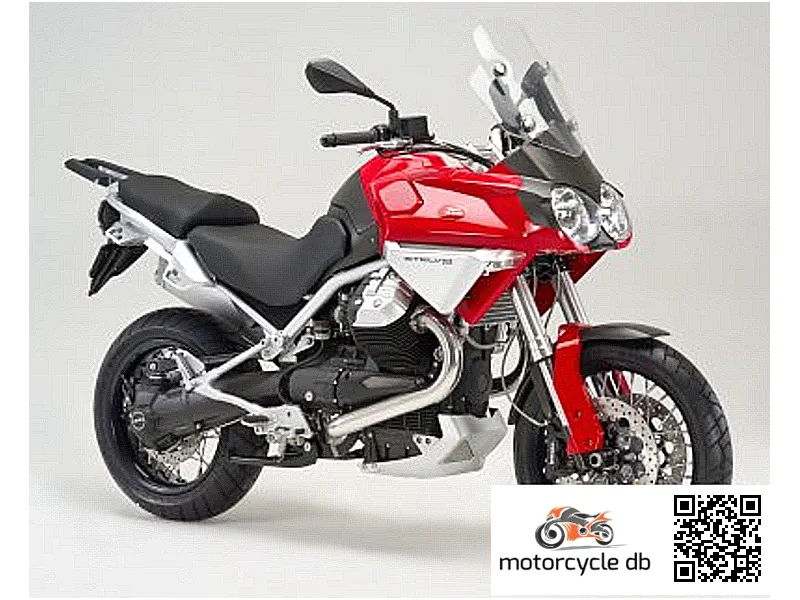

Moto Guzzi Stelvio - 2008 Specifications and Reviews

2008

General information
Category	Sport
Year	2008
Model	Moto Guzzi Stelvio

Engine and Transmission Specifications
Clutch	Single plate with integrated flexible couplings
Gearbox	6-speed
Lubrication system	Oil bath
Starter	Electric
Fuel system	Injection. Multipoint sequential electronic injection,
Bore x stroke	95.0 x 81.2 mm (3.7 x 3.2 inches)
Compression	11.0:1
Torque	108.00
Power	108.35
Stroke	4
Engine type	Twin
Capacity:	1151.00 ccm (70.23 cubic inches)
Physical measures and capacities
Ground clearance	210 mm (8.3 inches)
Overall width	1,025 mm (40.4 inches)
Overall length	2,250 mm (88.6 inches)
Overall height	1,475 mm (58.1 inches)
Seat height	840 mm (33.1 inches) If adjustable, lowest setting.
Dry weight	214.0 kg (471.8 pounds)

Moto Guzzi Stelvio dimensions and frame
Exhaust system	Stainless steel two-into-one 3-way catalysed with Lambda probe.
Rear brakes diameter	282 mm (11.1 inches)
Rear brakes	Single disc. Single 282 mm fixed stainless steel disc, floating caliper with 2 parallel pistons.
Front brakes diameter	320 mm (12.6 inches)
Front brakes	Double disc. Twin floating 320 mm stainless steel wave discs, radial calipers with 4 opposed pistons.
Rear tyre dimensions	180/55-17
Front tyre dimensions	110/90-19
Rear suspension travel	155 mm (6.1 inches)
Rear suspension	Progressive single swingarm, fully adjustable monoshock with separate gas reservoir (spring preload and hydraulic for rebound and compression).
Front suspension travel	170 mm (6.7 inches)
Front suspension	Upside down 50 mm fully adjustable forks (spring preload and hydraulic for rebound and compression) with mounting for radial calipers.
Rake (fork angle)	27.0°
Frame type	High tensile steel tubular twin cradle
Speed and acceleration
Power/weight ratio	0.5063 HP/kg
Other specs
Reserve fuel capacity	3.30 litres (0.87 gallons)
Fuel capacity	18.00 litres (4.76 gallons)
