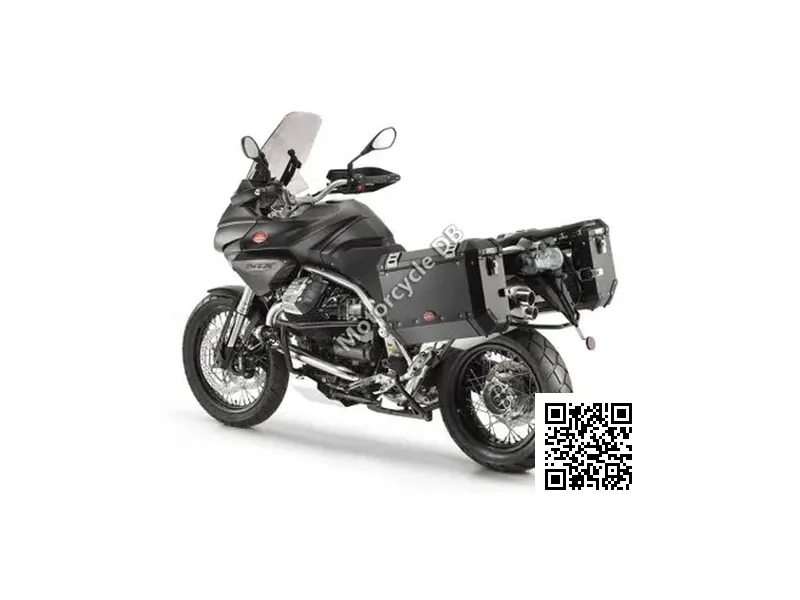

Moto Guzzi Stelvio 1200 NTX 4V - 2011 Specifications and Reviews
2011
General information | |
| Category | Enduro / offroad |
| Year | 2011 |
| Model | Moto Guzzi Stelvio 1200 NTX 4V |
| | |
Engine and Transmission Specifications | |
| Exhaust system | Stainless steel two-into-one 3-way catalysed with Lambda probe. Euro 3. |
| Clutch | Single-disc with integrated anti-vibration buffer |
| Gearbox | 6-speed |
| Cooling system | Oil & air |
| Fuel control | OHV |
| Fuel system | Injection. Multipoint sequential electronic injection, Magneti Marelli IAW5A phased, alfa-n system; two 50mm throttle bodies, Weber IWP 189 injectors, lambda probe. |
| Valves per cylinder | 4 |
| Torque | 113.00 Nm (11.5 kgf-m or 83.3 ft.lbs) @ 5800 |
| Power | 103.26 |
| Engine type | V2, four-stroke |
| Capacity: | 1151.00 ccm (70.23 cubic inches) |
Brakes, suspension, Frame and wheels | |
| Rear brakes diameter | 282 mm (11.1 inches) |
| Rear brakes | Single disc. Single fixed stainless steel disc, floating caliper with 2 parallel pistons. |
| Front brakes diameter | 320 mm (12.6 inches) |
| Front brakes | Double disc. Stainless steel wave discs, radial calipers with 4 opposed pistons. |
| Rear tyre dimensions | 180/55-R17 |
| Front tyre dimensions | 110/90-R19 |
| Rear suspension travel | 155 mm (6.1 inches) |
| Rear suspension | Single arm with rising-rate leverage, single shock absorber with hydraulic rebound damping adjustment and knob spring preloading set screw. |
| Front suspension travel | 170 mm (6.7 inches) |
| Front suspension | Upside down 50 mm fully adjustable forks (spring preload and hydraulic for rebound and compression) with mounting for radial calipers. |
| Trail | 125 mm (4.9 inches) |
| Rake (fork angle) | 27.0° |
| Frame type | High tensile steel tubular twin cradle |
| | |
Physical measures and capacities | |
| Reserve fuel capacity | 3.30 litres (0.87 gallons) |
| Fuel capacity | 18.00 litres (4.76 gallons) |
| Wheelbase | 1,535 mm (60.4 inches) |
| Ground clearance | 210 mm (8.3 inches) |
| Overall length | 2,250 mm (88.6 inches) |
| Overall height | 1,475 mm (58.1 inches) |
| Seat height | 840 mm (33.1 inches) If adjustable, lowest setting. |
| Power/weight ratio | 0.3987 HP/kg |
| Dry weight | 259.0 kg (571.0 pounds) |
Other specs | |
| Comments | Chinese made bike. |
| Wheelbase | 1,200 mm (47.2 inches) |
| Overall width | 1,070 mm (42.1 inches) |
| Wheels | 14 inch wheels |
| Rear Suspension | Aluminum, air-cell adjustable |
| Front Suspension | Aluminum, air-cell adjustable |
| Transmission type,final drive | Chain |
| Bore x Stroke | 70.0 x 64.8 mm (2.8 x 2.6 inches) |
| Top speed | 90.0 km/h (55.9 mph) |
| Capacity: | 250.00 ccm (15.26 cubic inches) |
| Color options | Silver, grey |
| Starter | Electric |
