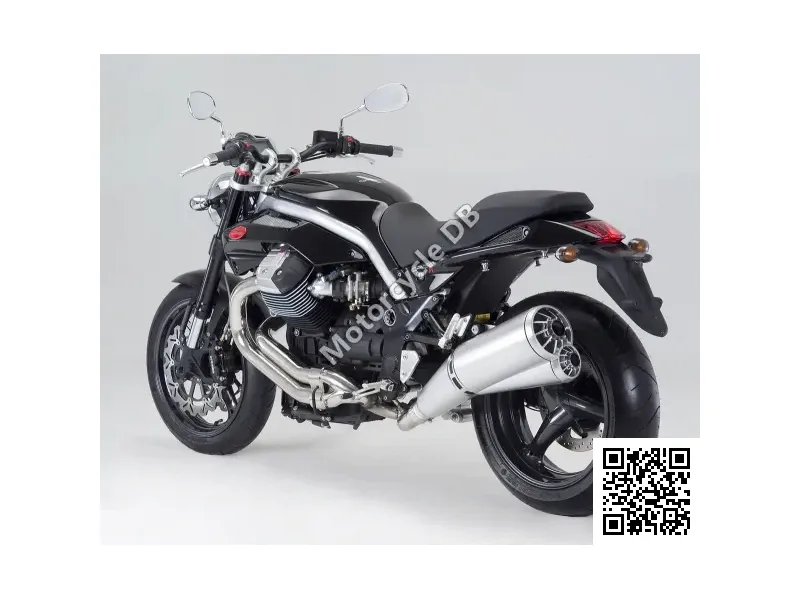

Moto Guzzi Griso 1200 8V - 2012 Specifications and Reviews
2012
General information | |
| Category | Naked bike |
| Year | 2012 |
| Model | Moto Guzzi Griso 1200 8V |
| | |
Engine and Transmission Specifications | |
| Exhaust system | Stainless steel two-into-one 3-way catalysed with Lambda probe. |
| Emission details | Three way catalyser and Lambda probe oxygen sensor |
| Driveline | Primary drive: Helicoidal gears, ratio 26/35 = 1 : 1.346. Final drive CA.R.C reactive drive; double universal joint with floating bevel gear, ratio 12/44 = 1 : 3,666 |
| Clutch | Single plate with integrated flexible couplings |
| Transmission type,final drive | Shaft drive (cardan) |
| Gearbox | 6-speed |
| Cooling system | Air |
| Ignition | Inductive discharge, digitally controlled, electronic twin spark ignition |
| Fuel control | OHV |
| Fuel system | Injection. Weber-Marelli |
| Valves per cylinder | 4 |
| Bore x stroke | 95.0 x 81.2 mm (3.7 x 3.2 inches) |
| Compression | 11.0:1 |
| Torque | 108.00 Nm (11.0 kgf-m or 79.7 ft.lbs) @ 6400 |
| Power | 110.00 |
| Engine details | V 90 twin |
| Engine type | V2, four-stroke |
| Capacity: | 1151.00 ccm (70.23 cubic inches) |
Brakes, suspension, Frame and wheels | |
| Wheels | Three-spoked aluminum alloy |
| Rear brakes diameter | 282 mm (11.1 inches) |
| Rear brakes | Single disc. Fixed stainless steel disc, floating caliper with 2 parallel pistons. |
| Front brakes diameter | 320 mm (12.6 inches) |
| Front brakes | Double disc. Stainless steel wave discs, radial calipers with 4 opposed pistons. |
| Rear tyre dimensions | 180/55-ZR17 |
| Front tyre dimensions | 120/70-ZR17 |
| Rear suspension travel | 110 mm (4.3 inches) |
| Rear suspension | Progressive single swingarm, fully adjustable monoshock with separate gas reservoir (spring preload and hydraulic for rebound and compression). |
| Front suspension travel | 120 mm (4.7 inches) |
| Front suspension | Upside down fork, fully adjustable in spring preload and compression and rebound damping |
| Trail | 108 mm (4.3 inches) |
| Rake (fork angle) | 26.3° |
| Frame type | Double cradle, in high tensile strength tubular steel |
| | |
Physical measures and capacities | |
| Reserve fuel capacity | 3.30 litres (0.87 gallons) |
| Fuel capacity | 16.70 litres (4.41 gallons) |
| Wheelbase | 1,554 mm (61.2 inches) |
| Ground clearance | 185 mm (7.3 inches) |
| Overall width | 830 mm (32.7 inches) |
| Overall length | 2,260 mm (89.0 inches) |
| Overall height | 1,070 mm (42.1 inches) |
| Seat height | 800 mm (31.5 inches) If adjustable, lowest setting. |
| Power/weight ratio | 0.4955 HP/kg |
| Dry weight | 222.0 kg (489.4 pounds) |
Other specs | |
| Comments | Made in China. |
| Wheelbase | 1,180 mm (46.5 inches) |
| Rear tyre | 20/10-10 |
| Front tyre | 21/7-10 |
| Rear Suspension | Aluminum,air-cell adjustable |
| Front Suspension | Aluminum,air-cell adjustable |
| Valves per cylinder | 4 |
| Bore x Stroke | 70.0 x 70.0 mm (2.8 x 2.8 inches) |
| Top speed | 95.0 km/h (59.0 mph) |
| Capacity: | 250.00 ccm (15.26 cubic inches) |
| Color options | Guzzi Black |
| Starter | Electric |
