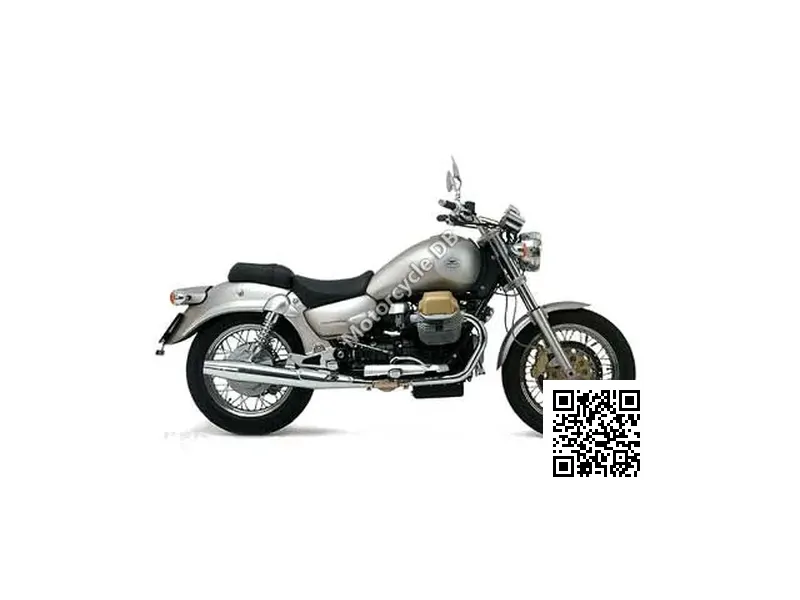

Moto Guzzi California Aluminium - 2006 Specifications and Reviews

2006

General information
Category	Custom / cruiser
Year	2006
Model	Moto Guzzi California Aluminium

Engine and Transmission Specifications
Clutch	Single disc, dry
Cooling system	Air
Lubrication system	Wet sump, forced oil, cartridge filter
Starter	Electric
Ignition	Magneti Marelli IAW electronic digital ignition
Valves per cylinder	2
Fuel system	Injection. Magneti Marelli IAW Multipoint phased sequential fuel injection
Bore x stroke	92.0 x 80.0 mm (3.6 x 3.1 inches)
Compression	9.8:1
Torque	94.92
Power	74.00
Stroke	4
Engine type	V2
Capacity:	1064.00 ccm (64.93 cubic inches)
Physical measures and capacities
Wheelbase	1,560 mm (61.4 inches)
Ground clearance	190 mm (7.5 inches)
Overall width	760 mm (29.9 inches)
Overall length	2,380 mm (93.7 inches)
Overall height	1,150 mm (45.3 inches)
Seat height	750 mm (29.5 inches) If adjustable, lowest setting.
Dry weight	251.0 kg (553.3 pounds)

Moto Guzzi California Aluminium dimensions and frame
Rear brakes diameter	282 mm (11.1 inches)
Rear brakes	Single disc
Front brakes diameter	320 mm (12.6 inches)
Front brakes	Double disc
Rear tyre dimensions	140/80-VB17
Front tyre dimensions	110/90-VB18
Rear suspension travel	89 mm (3.5 inches)
Rear suspension	Swing arm with 2 hydraulic shock absorbers with preload adjustment
Front suspension travel	140 mm (5.5 inches)
Front suspension	Marzocchi 45 mm hydraulic
Trail	108 mm (4.3 inches)
Rake (fork angle)	29.5°
Frame type	Detachable tubular duplex cradle
Speed and acceleration
Power/weight ratio	0.2948 HP/kg
Other specs
Color options	Matte Aluminum
Fuel capacity	18.96 litres (5.01 gallons)
