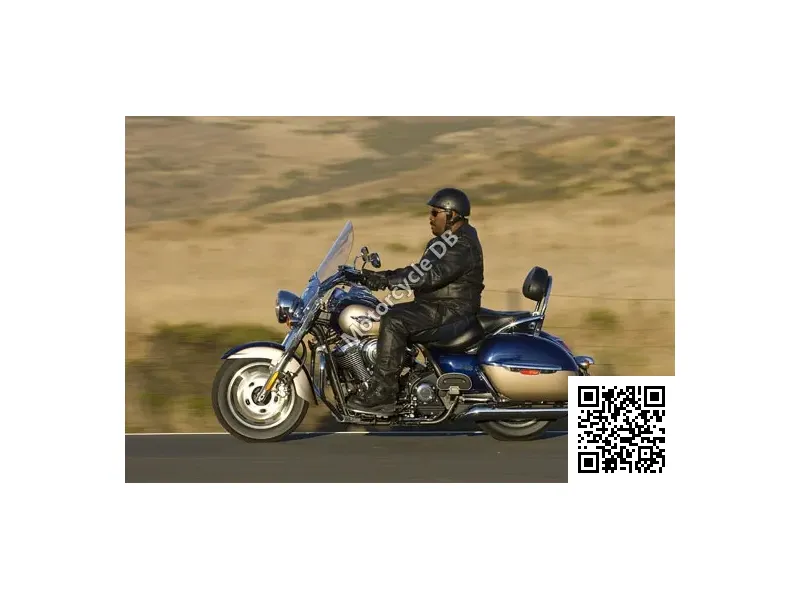

Kawasaki Vulcan 1700 Nomad - 2009 Specifications and Reviews
The 2009 Kawasaki Vulcan 1700 Nomad is a cruiser-touring motorcycle designed for riders seeking long-distance comfort and classic styling. Its 1700cc V-twin engine delivers reliable highway performance with digital fuel injection for smooth power delivery. Known for its spacious riding position, generous storage capacity, and passenger-friendly design, it excels at extended touring while maintaining traditional cruiser aesthetics.
General information | |
| Category | Touring |
| Year | 2009 |
| Model | Kawasaki Vulcan 1700 Nomad |
Engine and Transmission Specifications | |
| Transmission typefinal drive | Chain |
| Gearbox | 6-speed |
| Cooling system | Liquid |
| Starter | Electric |
| Fuel control | SOHC |
| Valves per cylinder | 4 |
| Fuel system | Injection. Digital fuel injection, dual 42mm throttle bodies |
| Bore x stroke | 102.0 x 104.0 mm (4.0 x 4.1 inches) |
| Compression | 9.5:1 |
| Stroke | 4 |
| Engine type | V2 |
| Capacity: | 1700.00 ccm (103.73 cubic inches) |
| | |
Physical measures and capacities | |
| Wheelbase | 1,689 mm (66.5 inches) |
| Overall width | 1,026 mm (40.4 inches) |
| Overall length | 2,499 mm (98.4 inches) |
| Overall height | 1,440 mm (56.7 inches) |
| Seat height | 749 mm (29.5 inches) If adjustable, lowest setting. |
| Weight incl. oil, gas, etc | 373.1 kg (822.5 pounds) |
Kawasaki Vulcan 1700 Nomad dimensions and frame | |
| Rear brakes | Single disc |
| Front brakes | Double disc |
| Rear tyre dimensions | 170/70-16 |
| Front tyre dimensions | 130/90-16 |
| Rear suspension | Swingarm with twin air-assisted shocks, with 4-way rebound damping / 3.1 in. |
| Front suspension | 45mm hydraulic fork / 5.5 in. |
| Rake (fork angle) | 30.0° |
| Frame type | Steel, double-cradle with box-section single-tube backbone |
| | |
Speed and acceleration | |
| Color options | Metallic Diablo Black, Two-tone: Candy Diamond Red / Pearl Luster Beige, Two-tone: Metallic Nocturne Blue / Pearl Luster Beige |
| Fuel capacity | 20.06 litres (5.30 gallons) |
Other specs | |
| Maintenance | Find parts, fluids, filters, maintenance tools and service items on eBay |
Performance Profile & Rider Fit
Best For
Rider Profile
| Best For | Best suited to experienced riders who are comfortable managing a very heavy, long-wheelbase cruiser at low speeds and in traffic. |
| Purpose | Built for long-distance highway touring with a passenger and luggage rather than for sport riding or commuting. |
| Rider Fit | Riders benefit from decent height and upper body strength to muscle the substantial weight around at parking-lot speeds, though the low seat height helps shorter riders reach the ground. |
| Character | A big-torque, low-revving V-twin cruiser that rewards a relaxed, unhurried riding style and long open roads. |
| Not Ideal For | Not a good fit for riders seeking sharp cornering agility, off-road capability, or a lightweight, nimble city runabout. |
Character map is an editorial estimate based on this bike's specifications, not a lab-tested measurement.
⚠ Safety Recalls (1)
KAWASAKI IS RECALLING CERTAIN MODEL YEAR 2009-2010 VULCAN MOTORCYCLES. THE ENGINE MAY STALL IF THE RIDER IS COASTING WITH THE CLUTCH PULLED IN DUE TO AN IMPROPER SETTING OF THE ENGINE CONTROL UNIT (ECU).
Risk: ENGINE STALLING COULD CREATE A POTENTIAL FOR A CRASH RESULTING IN INJURY OR DEATH.
Remedy: DEALERS WILL REPLACE THE ECU WITH ONE CONTAINING REVISED SETTINGS TO ADDRESS THE ENGINE STALLING. THE SAFETY RECALL BEGAN ON NOVEMBER 1, 2010. OWNERS MAY CONTACT KAWASAKI CONSUMER SERVICES DEPARTMENT AT 1-866-802-9381.
Source: NHTSA. View all Kawasaki recalls →
