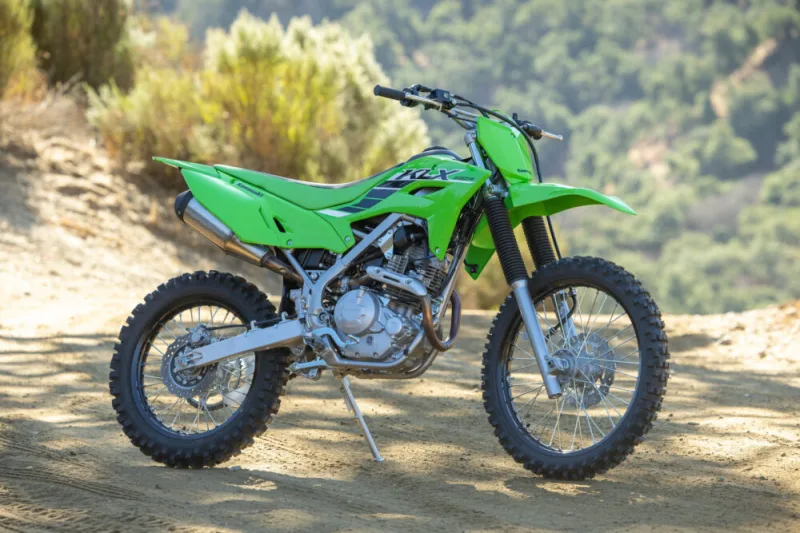

Kawasaki KLX 230R - 2024 Specifications and Reviews
The 2024 Kawasaki KLX 230R is a lightweight enduro bike designed for beginner and intermediate off-road riders seeking an accessible, affordable entry into adventure riding. Its 233cc single-cylinder engine delivers manageable power with excellent fuel efficiency, while the compact frame and low seat height make it ideal for riders building confidence on trails and rough terrain. Known for reliability and ease of maintenance, the KLX 230R excels as a versatile weekend warrior for recreational off-road exploration.
General information | |
| Price as new | Do you know this bike?Click here to rate it. We miss 2 votes to show the rating. |
| Type | Enduro / offroad |
| Year of manufacture | 2024 |
| Model | Kawasaki KLX 230R |
Engine and Transmission Specifications | |
| Driveline | Sealed chain |
| Clutch | Wet multi-disc, manual |
| Transmission type | Chain (final drive) |
| Gearbox | 6-speed |
| Cooling system | Air |
| Lubrication system | Forced lubrication, wet sump |
| Ignition | TCBI Electronic Advance |
| Fuel control | Single Overhead Cams (SOHC) |
| Fuel system | Injection. DFI® with 32mm Keihin throttle body |
| Valves per cylinder | 4 |
| Bore x stroke | 67.0 x 66.0 mm (2.6 x 2.6 inches) |
| Compression | 9.4:1 |
| Type of engine | Single cylinder, four-stroke |
| Capacity: | 233.0 ccm (14.22 cubic inches) |
Brakes, suspension, Frame and wheels | |
| Wheels | Wire spoked |
| Rear brakes | Single disc. Petal disc. Single-piston caliper. |
| Diameter | 240 mm (9.4 inches) |
| Front brakes | Single disc. Petal disc. Dual-piston caliper. |
| Rear tire | 100/100-18 |
| Front tire | 80/100-21 |
| Rear wheel travel | 251 mm (9.9 inches) |
| Rear suspension | Uni-Trak® linkage system and single shock with adjustable spring preload |
| Front wheel travel | 249 mm (9.8 inches) |
| Front suspension | 37mm telescopic fork |
| Trail | 112 mm (4.4 inches) |
| Rake (fork angle) | 26.5° |
| Frame type | High-tensile steel, box section perimeter |
| | |
Physical measures and capacities | |
| Fuel capacity | 6.43 litres (1.70 US gallons) |
| Wheelbase | 1359 mm (53.5 inches) |
| Ground clearance | 300 mm (11.8 inches) |
| Overall width | 841 mm (33.1 inches) |
| Overall length | 2045 mm (80.5 inches) |
| Overall height | 1199 mm (47.2 inches) |
| Seat height | 919 mm (36.2 inches) If adjustable, lowest setting. |
| Weight incl. oil, gas, etc | 115.0 kg (253.6 pounds) |
| | |
Other specs | |
| Maintenance | Find parts, fluids, filters, maintenance tools and service items on eBay |
| Update specs | |
| Factory warranty | 6 months |
| Starter | Electric |
| Color options | Lime Green |
Performance Profile & Rider Fit
Best For
Track15%
City35%
Cornering55%
Daily Riding30%
Touring20%
Passenger10%
Rider Profile
| Best For | Well suited to beginner and intermediate off-road riders thanks to its light weight, low-ish seat height for the class, and mild single-cylinder air-cooled power delivery. |
| Purpose | Built as a trail and enduro machine for exploring dirt roads, single-track, and light technical terrain rather than for speed or pavement use. |
| Rider Fit | Its 120 kg wet weight and manageable 904 mm seat height make it approachable for shorter or less experienced riders, though the tall ground clearance still demands some leg reach. |
| Character | A friendly, forgiving trail companion with soft long-travel suspension and predictable, low-stress power that rewards playful, momentum-based riding over aggressive throttle use. |
| Not Ideal For | Not the right choice for highway commuting, high-speed touring, or riders wanting strong outright acceleration and top-end performance. |
Character map is an editorial estimate based on this bike's specifications, not a lab-tested measurement.
