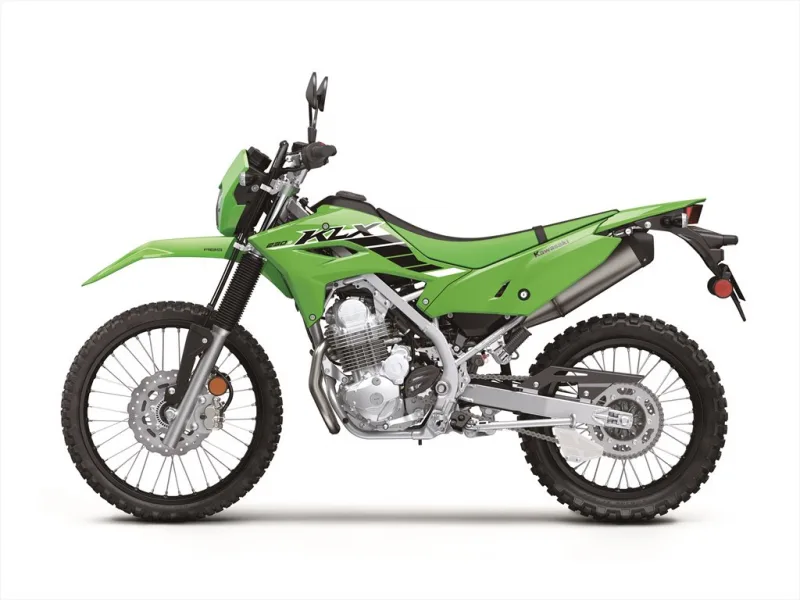

Kawasaki KLX230 - 2024 Specifications and Reviews
The 2024 Kawasaki KLX230 is a lightweight enduro bike designed for beginners and recreational riders seeking an accessible off-road platform. Powered by a fuel-injected 233cc single-cylinder engine paired with a six-speed transmission, it delivers manageable power with excellent reliability. Known for its approachable seat height and nimble handling, the KLX230 excels as an entry-level trail bike for learning fundamental off-road skills.
General information | |
| Price as new | Do you know this bike?Click here to rate it. We miss 2 votes to show the rating. |
| Type | Enduro / offroad |
| Year model | 2024 |
| Model | Kawasaki KLX230 |
| | |
Engine and Transmission Specifications | |
| Driveline | Sealed chain |
| Clutch | Wet multi-disc, manual |
| Transmission type | Chain (final drive) |
| Gearbox | 6-speed |
| Cooling system | Air |
| Lubrication system | Forced lubrication, wet sump |
| Ignition | TCBI Electronic Advance |
| Fuel control | Single Overhead Cams (SOHC) |
| Fuel system | Injection. DFI® with 32mm Keihin throttle body |
| Valves per cylinder | 4 |
| Bore x stroke | 67.0 x 66.0 mm (2.6 x 2.6 inches) |
| Compression | 9.4:1 |
| Type of engine | Single cylinder, four-stroke |
| Capacity: | 233.0 ccm (14.22 cubic inches) |
| | |
Brakes, suspension, Frame and wheels | |
| Wheels | Wire spoked |
| Rear brakes | Single disc. Single-piston. Petal disc. |
| Diameter | 240 mm (9.4 inches) |
| Front brakes | Single disc. Dual-piston. Petal disc. |
| Rear tire | 4.10-18 |
| Front tire | 2.75-21 |
| Rear wheel travel | 224 mm (8.8 inches) |
| Rear suspension | Uni-Trak® linkage system and single shock with adjustable spring preload |
| Front wheel travel | 221 mm (8.7 inches) |
| Front suspension | 37mm telescopic fork |
| Trail | 117 mm (4.6 inches) |
| Rake (fork angle) | 27.5° |
| Frame type | High-tensile steel, box-section perimeter |
Physical measures and capacities | |
| Fuel capacity | 7.57 litres (2.00 US gallons) |
| Wheelbase | 1379 mm (54.3 inches) |
| Ground clearance | 264 mm (10.4 inches) |
| Overall width | 836 mm (32.9 inches) |
| Overall length | 2106 mm (82.9 inches) |
| Overall height | 1166 mm (45.9 inches) |
| Seat height | 884 mm (34.8 inches) If adjustable, lowest setting. |
| Weight incl. oil, gas, etc | 132.0 kg (291.1 pounds) |
Other specs | |
| Maintenance | Find parts, fluids, filters, maintenance tools and service items on eBay |
| Update specs | |
| Factory warranty | 12 months |
| Light | LED headlight |
| Instruments | Digital |
| Starter | Electric |
| Color options | Battle Gray |
Performance Profile & Rider Fit
Best For
Track10%
City50%
Cornering45%
Daily Riding40%
Touring25%
Passenger20%
Rider Profile
| Best For | Well suited to beginners and returning riders thanks to its light weight, low seat height, and manageable single-cylinder power delivery. |
| Purpose | Designed primarily as a lightweight trail and dual-sport bike for casual off-road exploration and easy commuting rather than outright performance. |
| Rider Fit | The low 880 mm seat height and 132 kg wet weight make it very accessible for shorter or less physically strong riders to handle and pick up. |
| Character | A friendly, forgiving, and nimble machine that rewards playful low-speed handling over raw speed or long-distance comfort. |
| Not Ideal For | Not a good fit for riders seeking high-speed highway cruising, heavy touring loads, or serious two-up passenger comfort. |
Character map is an editorial estimate based on this bike's specifications, not a lab-tested measurement.
