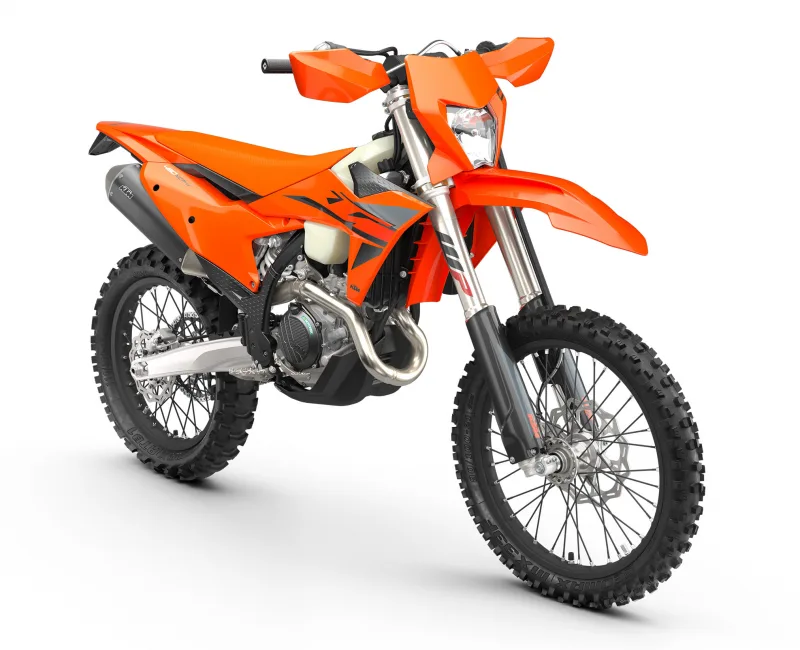

KTM 250 Xc F - 2026 Specifications and Reviews
The KTM 250 XC-F is a lightweight enduro machine designed for intermediate to advanced off-road riders seeking nimble handling and strong mid-range power delivery. Its potent single-cylinder four-stroke engine with liquid cooling and advanced Keihin EFI technology excels in technical terrain and tight trail conditions. Known for exceptional maneuverability and reliability, it remains a go-to choice for cross-country enduro racing and demanding backcountry exploration.
2026
General information | |
| Color Options | Orange/black |
| Category | Enduro / offroad |
| Year | 2025 |
Engine and Transmission Specifications | |
| Starting | Electric |
| Clutch | Wet multi-disc DS clutch, Brembo hydraulics |
| Final Drive | Chain (final drive) |
| Gearbox | 6-speed |
| Cooling System | Liquid |
| Ignition | Keihin EMS |
| Fuel Control | Double Overhead Cams/Twin Cam (DOHC) |
| Induction | Injection. Keihin EFI, throttle body 44 mm |
| Bore x Stroke | 81.0 x 48.5 mm (3.2 x 1.9 inches) |
| Compression Ratio | 14.5:1 |
| Engine Type | Single cylinder, four-stroke |
| Capacity: | 249.9 ccm (15.25 cubic inches) |
| | |
Physical measures and capacities | |
| Fuel Capacity | 8.50 litres (2.25 US gallons) |
| Wheelbase | 1493 mm (58.8 inches) |
| Ground Clearance | 343 mm (13.5 inches) |
| Seat Height | 954 mm (37.6 inches) If adjustable, lowest setting. |
| Dry Weight | 103.5 kg (228.2 pounds) |
| | |
KTM 250 Xc F dimensions and frame | |
| Wheels | Spoked wheels with aluminium rims |
| Rear Brakes | Single disc |
| Brake Disc Diameter | 220 mm (8.7 inches) |
| Front Brakes | Single disc |
| Rear Wheel Travel | 300 mm (11.8 inches) |
| Rear Suspension | WP XACT Monoshock with linkage |
| Front Wheel Travel | 300 mm (11.8 inches) |
| Front Suspension | WP USD closed cartridge Ø 48 mm |
| Frame | Central double-cradle-type 25CrMo4 steel. Aluminum-reinforced polyamide subframe. |
Other specs | |
| Maintenance | Find parts, fluids, filters, maintenance tools and service items on eBay |
| Update specs | Report missing specs or required updates. |
| Electrical | 2Ah Lithium-ion battery |
| Rake (fork angle) | 26.1° |
| Driveline | 520 X-ring chain |
| Maximum RPM | 14000 |
| Motorcycle name | KTM 250 XC-F |
Performance Profile & Rider Fit
Best For
Track40%
City15%
Cornering80%
Daily Riding15%
Touring15%
Passenger5%
Rider Profile
| Best For | This is a competition-focused cross-country enduro machine best suited to intermediate-to-expert off-road riders who already have solid dirt bike skills. |
| Purpose | Built for cross-country and enduro racing, it thrives on tight trails, technical terrain, and rocky or rooty singletrack where light weight and long-travel suspension matter most. |
| Rider Fit | Its tall 954mm seat height, minimal padding, and race-oriented ergonomics demand good leg length, fitness, and standing-riding stamina rather than plush seated comfort. |
| Character | Sharp, high-revving, and extremely light on its feet, it rewards aggressive, active riding with quick direction changes and confident throttle control. |
| Not Ideal For | It is not suited to commuting, highway travel, two-up riding, or riders wanting a comfortable, low-maintenance daily street bike. |
Character map is an editorial estimate based on this bike's specifications, not a lab-tested measurement.
