What category is the 2027 KTM 250 SX F?

The 2027 KTM 250 SX F has a Category of Cross / motocross.

What is the engine size of the 2027 KTM 250 SX F?

The 2027 KTM 250 SX F has a Capacity: of 249.9 ccm (15.25 cubic inches).

How many gears does the 2027 KTM 250 SX F have?

The 2027 KTM 250 SX F has a Gearbox of 5-speed.

What type of engine does the 2027 KTM 250 SX F have?

The 2027 KTM 250 SX F has a Engine type of Single cylinder, four-stroke.

KTM 250 SX F - 2027 Specifications and Reviews

Name: 2027 KTM 250 SX F
Brand: KTM

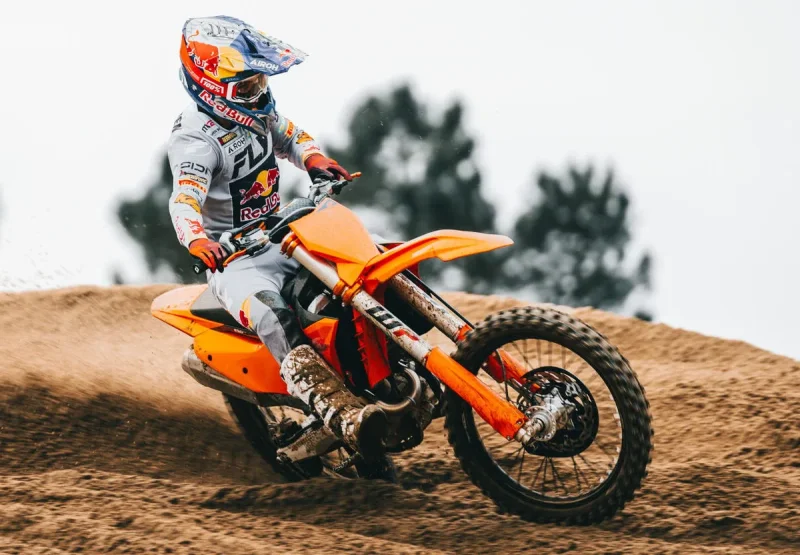

The KTM 250 SX-F remains for 2027 KTM's entry point into four-stroke motocross racing, powered by a 249.9cc single-cylinder engine with a high 14.5:1 compression ratio, through a 5-speed gearbox and Brembo-actuated wet clutch. It uses the same chromoly steel frame, WP XACT air fork, and WP XACT monoshock as its larger SX-F siblings, at a claimed 101 kg dry weight and 958mm seat height. It's built purely for closed-course motocross competition rather than trail or street riding.

⇄ Compare against another bike 📅 All Years

2027

2026

❮❯

Add/Upload pictures for this motorcycle

General information
Color Options	Orange/white/grey/red/yellow
Category	Cross / motocross
Model	KTM 250 SX F
Engine and Transmission Specifications
Starting	Electric
Clutch	Wet multi-disc clutch, Brembo hydraulics
Final Drive	Chain (final drive)
Gearbox	5-speed
Cooling System	Liquid
Ignition	Keihin EMS
Induction	Injection. Keihin EFI, throttle body 44 mm
Bore x Stroke	81.0 x 48.5 mm (3.2 x 1.9 inches)
Compression Ratio	14.5:1
Capacity:	249.9 ccm (15.25 cubic inches)

Physical measures and capacities
Fuel Capacity	7.20 litres (1.90 US gallons)
Wheelbase	1493 mm (58.8 inches)
Ground Clearance	343 mm (13.5 inches)
Seat Height	958 mm (37.7 inches) If adjustable, lowest setting.
Dry Weight	101.0 kg (222.7 pounds)

KTM 250 SX F dimensions and frame
Wheels	Spoked wheels with aluminium rims.
Rear Brakes	Single disc
Brake Disc Diameter	220 mm (8.7 inches)
Front Brakes	Single disc
Rear Tyre	110/90-19
Front Tyre	80/100-21
Rear Wheel Travel	300 mm (11.8 inches)
Rear Suspension	WP XACT Monoshock with linkage
Front Wheel Travel	310 mm (12.2 inches)
Front Suspension	WP XACT-USD (AER), Ã˜ 48 mm
Frame	Central double-cradle-type 25CrMo4 steel. Aluminum-reinforced polyamide subframe.
Other specs
Maintenance	Find parts, fluids, filters, maintenance tools and service items on eBay
Update specs	Report missing specs or required updates.
Comments	Connectivity.
Electrical	2 Ah lithium-ion battery
Rake (fork angle)	26.1Â°
Exhaust system	Aluminum
Driveline	520, Non-sealed chain.
Engine type	Single cylinder, four-stroke
Year	2025

Performance Profile & Rider Fit

Best For

Track85%

City10%

Cornering90%

Daily Riding10%

Touring10%

Passenger5%

Rider Profile

Best For	This is a full-blown 250cc motocross machine best suited to intermediate and advanced riders who already know how to manage a light, high-strung, race-tuned bike.
Purpose	Built purely for motocross competition and off-road riding, excelling on tracks and rough terrain rather than pavement.
Rider Fit	At around 101 kg dry with a tall 958 mm seat height, it demands good fitness, strong legs, and comfort standing on the pegs for extended periods.
Character	A sharp, aggressive, high-revving single-cylinder bike that rewards precise inputs with explosive acceleration and razor-sharp handling.
Not Ideal For	Not suitable for riders wanting a comfortable commuter, a passenger-friendly bike, or anything resembling relaxed street or long-distance touring.

Character map is an editorial estimate based on this bike's specifications, not a lab-tested measurement.

Rider Fit Visualizer

2027 KTM 250 SX F Rider Ergonomics Assessment

Your height

Inseam (optional)

Units

Calculated in your browser only - your height/inseam are never sent to our servers.

Feet:

At 958mm, a rider of 175cm with a 79cm (estimated) inseam will not reach the ground comfortably on the 2027 KTM 250 SX F, with a cramped knee angle of around 85 degrees and an upright riding position.

Data quality: measured. Assumes about 30mm of suspension sag once seated (a typical street-bike rule of thumb - stiffer or softer suspension will vary). This is an approximation from category-typical geometry and generic body proportions, not a measurement of this specific bike or you - sit on it before you buy.

Find bikes that fit your height →
