Husqvarna TC 125 Heritage - 2024 Specifications and Reviews

2024

General information
Price as new	Do you know this bike?Click here to rate it. We miss 2 votes to show the rating.
Type	Cross / motocross
Year of manufacture	2024

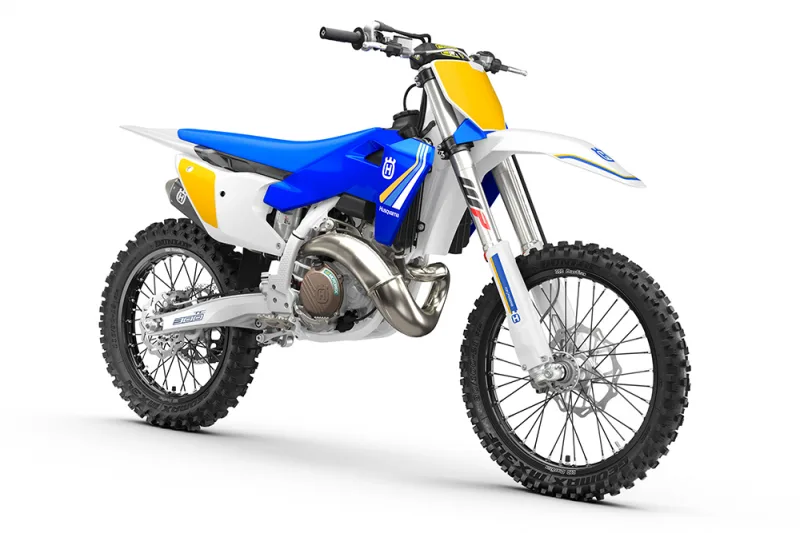

Model name	Husqvarna TC 125 Heritage

Engine and Transmission Specifications
Driveline	5/8 x 1/4´ chain
Clutch	Wet multi-disc DS clutch, Brembo hydraulics
Transmission type	Chain (final drive)
Gearbox	6-speed
Cooling system	Liquid
Lubrication system	Mixture oil lubrication
Ignition	Vitesco Technologies EMS
Fuel system	Injection
Bore x stroke	54.0 x 54.5 mm (2.1 x 2.1 inches)
Type of engine	Single cylinder, two-stroke
Capacity:	124.8 ccm (7.62 cubic inches)
Brakes, suspension, Frame and wheels
Wheels	Dunlop® Geomax MX33 tyres
Rear brakes	Single disc. Brembo single-piston floating calliper
Diameter	260 mm (10.2 inches)
Front brakes	Single disc. Brembo twin-piston floating calliper
Rear tire	120/90-18
Front tire	80/100-21
Rear wheel travel	293 mm (11.5 inches)
Rear suspension	WP XACT Monoshock with linkage
Front wheel travel	305 mm (12.0 inches)
Front suspension	WP XACT-USD, Ø 48 mm
Rake (fork angle)	26.1°
Frame type	Central double-cradle-type 25CrMo4 steel
Physical measures and capacities
Oil capacity	0.90 litres (0.95 US quarts)
Fuel capacity	7.20 litres (1.90 US gallons)
Wheelbase	1485 mm (58.5 inches)
Ground clearance	350 mm (13.8 inches)
Seat height	939 mm (37.0 inches) If adjustable, lowest setting.
Dry weight	92.5 kg (203.9 pounds)
Other specs
Update specs
Starter	Electric
Color options	White/blue/yellow
