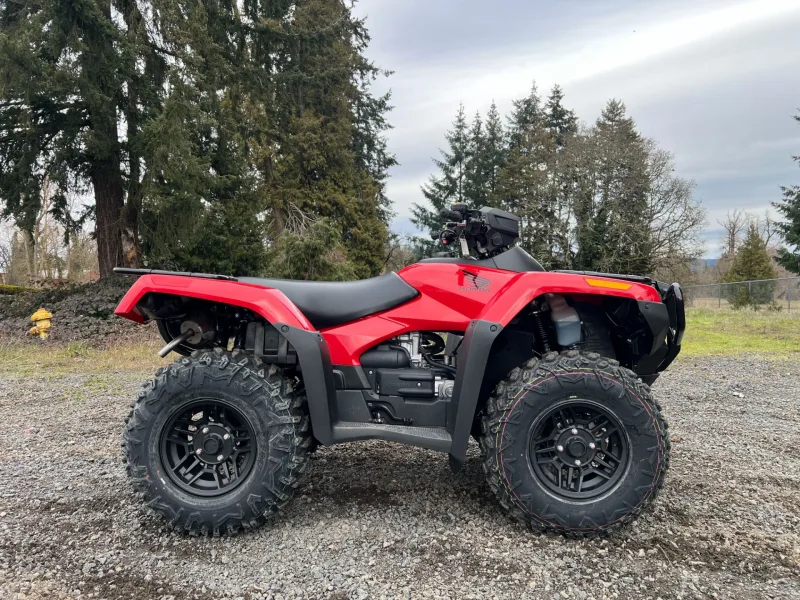

Honda Fourtrax Rubicon 4X4 Automatic - 2025 Specifications and Reviews
The 2025 Honda Fourtrax Rubicon 4x4 Automatic is a mid-size utility ATV engineered for recreational and light utility work across diverse terrain. Its automatic transmission and balanced dimensions make it accessible to intermediate riders seeking reliable off-road performance. Known for its durability and capable four-wheel-drive system, the Rubicon excels in muddy conditions and uneven landscapes.
2025
General information | |
| Color Options | Hero Red, Matte Silver metallic |
| Price | US$ 9999. MSRP depends on country, taxes, accessories, etc. |
| Category | ATV |
Engine and Transmission Specifications | |
| Starting | Electric & kick |
| Emission Details | Meets current California Air Resources Board (CARB) off-road emissions standards. |
| Clutch | Automatic |
| Final Drive | Shaft drive (cardan) (final drive) |
| Gearbox | 3-speed |
| Cooling System | Liquid |
| Ignition | Full transistorized ignition |
| Fuel Control | Overhead Cams (OHC) |
| Induction | Injection. PGM-FI, 40mm |
| Valves Per Cylinder | 4 |
| Bore x Stroke | 102.0 x 82.6 mm (4.0 x 3.3 inches) |
| Compression Ratio | 9.2:1 |
| Engine Details | Longitudinally mounted engine |
| Capacity: | 675.0 ccm (41.19 cubic inches) |
Physical measures and capacities | |
| Fuel Capacity | 16.65 litres (4.40 US gallons) |
| Wheelbase | 1285 mm (50.6 inches) |
| Ground Clearance | 241 mm (9.5 inches) |
| Overall Width | 1207 mm (47.5 inches) |
| Overall Length | 2197 mm (86.5 inches) |
| Overall Height | 1219 mm (48.0 inches) |
| Seat Height | 884 mm (34.8 inches) If adjustable, lowest setting. |
| Wet Weight | 318.0 kg (701.0 pounds) |
| | |
Honda Fourtrax Rubicon 4X4 Automatic dimensions and frame | |
| Rear Brakes | Double disc |
| Brake Disc Diameter | 170 mm (6.7 inches) |
| Front Brakes | Double disc |
| Rear Tyre | 26/10-12 |
| Front Tyre | 26/8-12 |
| Rear Wheel Travel | 203 mm (8.0 inches) |
| Rear Suspension | Independent dual-arm |
| Front Wheel Travel | 175 mm (6.9 inches) |
| Front Suspension | Independent double-wishbone |
| | |
Other specs | |
| Maintenance | Find parts, fluids, filters, maintenance tools and service items on eBay |
| Update specs | Report missing specs or required updates. |
| Comments | Model ID: TRX700FA. Optional electronic power steering and Automatic DCT. |
| Warranty | One year. Unlimited milage. Transferable. |
| Carrying Capacity | Front and rear rack |
| Reserve fuel capacity | 4.54 litres (1.20 US gallons) |
| Driveline | Direct front and rear driveshafts with TraxLok® and torque-sensitive front differential |
| Lubrication system | Dry sump |
| Engine type | Single cylinder, four-stroke |
| Year | 2025 |
| Motorcycle name | Honda FourTrax Rubicon 4x4 Automatic |
Performance Profile & Rider Fit
Best For
Track5%
City10%
Cornering25%
Daily Riding30%
Touring25%
Passenger5%
Rider Profile
| Best For | Suited to riders from novice to experienced who want a dependable, easy-to-operate utility ATV rather than a high-performance machine. |
| Purpose | Built as a heavy-duty workhorse for hauling, towing, and traversing rough terrain rather than for speed or recreation on pavement. |
| Rider Fit | Its substantial weight and long wheelbase demand deliberate body positioning and moderate physical effort when navigating tight or technical off-road obstacles. |
| Character | A rugged, no-nonsense 4x4 utility ATV with automatic clutch operation, torque-focused low-range power, and shaft-driven all-wheel traction for dependable off-road work. |
| Not Ideal For | Not for riders seeking speed, cornering agility, or on-road touring capability, as it is a low-revving single-cylinder utility machine rather than a performance vehicle. |
Character map is an editorial estimate based on this bike's specifications, not a lab-tested measurement.
