General information | |
| Category | Super motard |
| Year | 2004 |

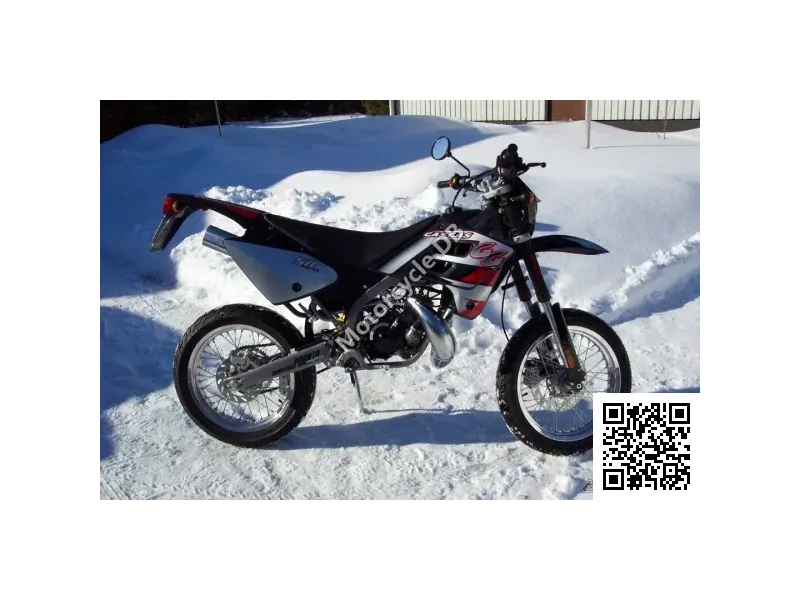

| Model | GAS GAS SM 50 |
| | |
Engine and Transmission Specifications | |
| Transmission typefinal drive | Chain |
| Gearbox | 6-speed |
| Cooling system | Liquid |
| Fuel system | Carburettor |
| Bore x stroke | 40.0 x 39.2 mm (1.6 x 1.5 inches) |
| Stroke | 2 |
| Engine type | Single cylinder |
| Capacity: | 399.00 ccm (24.35 cubic inches) |
| | |
Physical measures and capacities | |
| Wheelbase | 1,475 mm (58.1 inches) |
| Ground clearance | 370 mm (14.6 inches) |
| Seat height | 920 mm (36.2 inches) If adjustable, lowest setting. |
| Dry weight | 93.0 kg (205.0 pounds) |
GAS GAS SM 50 dimensions and frame | |
| Rear brakes diameter | 220 mm (8.7 inches) |
| Rear brakes | Single disc |
| Front brakes diameter | 240 mm (9.4 inches) |
| Front brakes | Single disc |
| Rear tyre dimensions | 130/70-17 |
| Front tyre dimensions | 100/80-17 |
| Rear suspension travel | 250 mm (9.8 inches) |
| Rear suspension | Progressive system, Boge shock absorber. |
| Front suspension travel | 160 mm (6.3 inches) |
| Front suspension | Showa inverted fork |
| Frame type | Type deltabox, made of rectangular profile Cr-Mo |
