General information | |
| Category | Enduro / offroad |
| Year | 2016 |

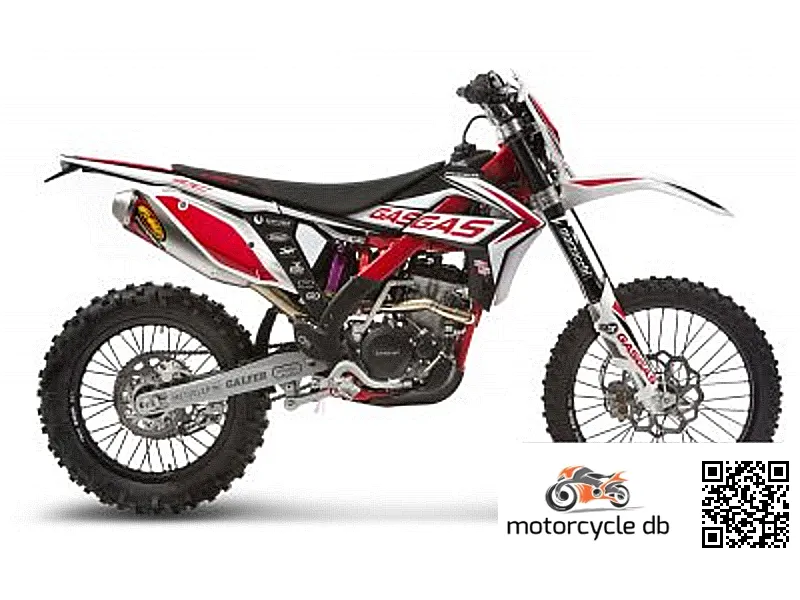

| Model | GAS GAS EC 300F |
Engine and Transmission Specifications | |
| Clutch | Multidisc in oil bath |
| Transmission type,final drive | Chain |
| Gearbox | 5-speed |
| Cooling system | Liquid |
| Ignition | Electronic |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Fuel system | Carburettor. Keihin fcr-mx37 |
| Bore x Stroke | 83.0 x 53.6 mm (3.3 x 2.1 inches) |
| Engine type | Single cylinder, four-stroke |
| Capacity: | 290.00 ccm (17.70 cubic inches) |
Brakes, suspension, Frame and wheels | |
| Wheels | Excel Aluminium spoke rim |
| Rear brakes diameter | 220 mm (8.7 inches) |
| Rear brakes | Single disc. Single-piston caliper. |
| Front brakes diameter | 260 mm (10.2 inches) |
| Front brakes | Single disc. Two-piston calipers. |
| Rear tyre | 140/80-18 |
| Front tyre | 90/90-21 |
| Rear wheel travel | 298 mm (11.7 inches) |
| Rear Suspension | Aluminium swingarm. Reiger Mono shock. Spring preload, rebound and compression high/low speed. |
| Front wheel travel | 305 mm (12.0 inches) |
| Front Suspension | Marzocchi shiver inverted ø48 mm, closed cartridge |
| Frame type | Chrom-Molybdenum frame with B-profil |
| | |
Physical measures and capacities | |
| Fuel capacity | 6.30 litres (1.66 gallons) |
| Wheelbase | 1,490 mm (58.7 inches) |
| Overall width | 830 mm (32.7 inches) |
| Overall length | 2,200 mm (86.6 inches) |
| Overall height | 1,260 mm (49.6 inches) |
| Seat height | 950 mm (37.4 inches) If adjustable, lowest setting. |
| Dry weight | 108.0 kg (238.1 pounds) |
Other specs | |
| Comments | Spanish bike. Model also called Gas Gas EC 300F Racing. |
| Starter | Electric & kick |
| Color options | Black/red/white |
