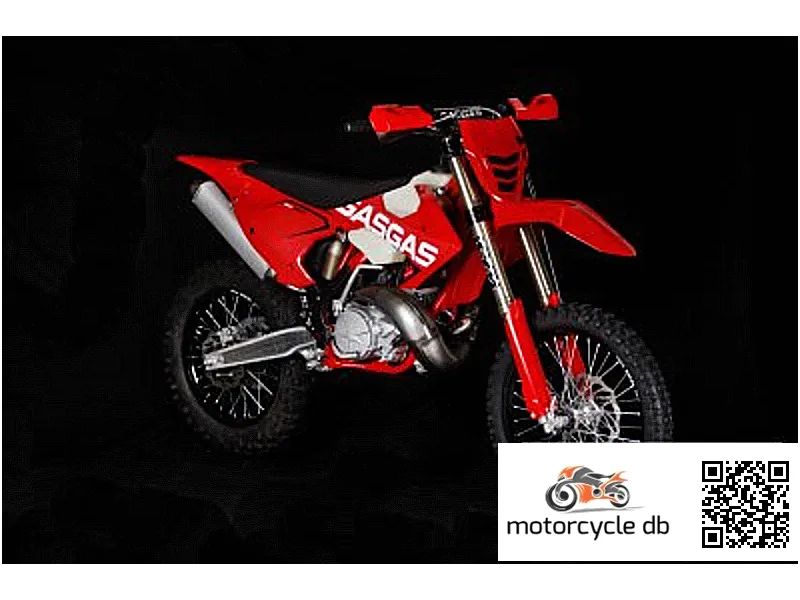

GAS GAS EC 250 Racing - 2017 Specifications and Reviews

2017

General information
Category	Enduro / offroad
Year	2017
Model	GAS GAS EC 250 Racing
Engine and Transmission Specifications
Exhaust system	FMF
Clutch	Multidisc in oil bath
Transmission type,final drive	Chain
Gearbox	6-speed
Cooling system	Liquid
Lubrication system	2-stroke-oil/fuel mixed 1:50
Ignition	Electronic
Fuel system	Carburettor. Keihin PKWS 38 mm
Bore x Stroke	66.4 x 72.0 mm (2.6 x 2.8 inches)
Engine details	Direct reed valve VForce 4
Engine type	Single cylinder, two-stroke
Capacity:	249.30 ccm (15.21 cubic inches)
Brakes, suspension, Frame and wheels
Wheels	Excel Aluminium spoke rim
Rear brakes diameter	220 mm (8.7 inches)
Rear brakes	Single disc. Wave disc. Single-piston caliper.
Front brakes diameter	260 mm (10.2 inches)
Front brakes	Single disc. Wave disc. Two-piston calipers.
Rear tyre	140/80-18
Front tyre	90/90-21
Rear wheel travel	298 mm (11.7 inches)
Rear Suspension	Aluminium swingarm. Reiger Mono shock. Spring preload, rebound and compression high/low speed.
Front wheel travel	305 mm (12.0 inches)
Front Suspension	Marzocchi Shiver invertid Ø48 mm
Frame type	Perimeter frame in chrome-molybdenum

Physical measures and capacities
Fuel capacity	9.50 litres (2.51 gallons)
Wheelbase	1,480 mm (58.3 inches)
Overall width	830 mm (32.7 inches)
Overall length	2,200 mm (86.6 inches)
Overall height	1,260 mm (49.6 inches)
Seat height	950 mm (37.4 inches) If adjustable, lowest setting.
Dry weight	107.0 kg (235.9 pounds)
Other specs
Comments	Spanish made bike.
Starter	Electric & kick
Color options	Red/white
