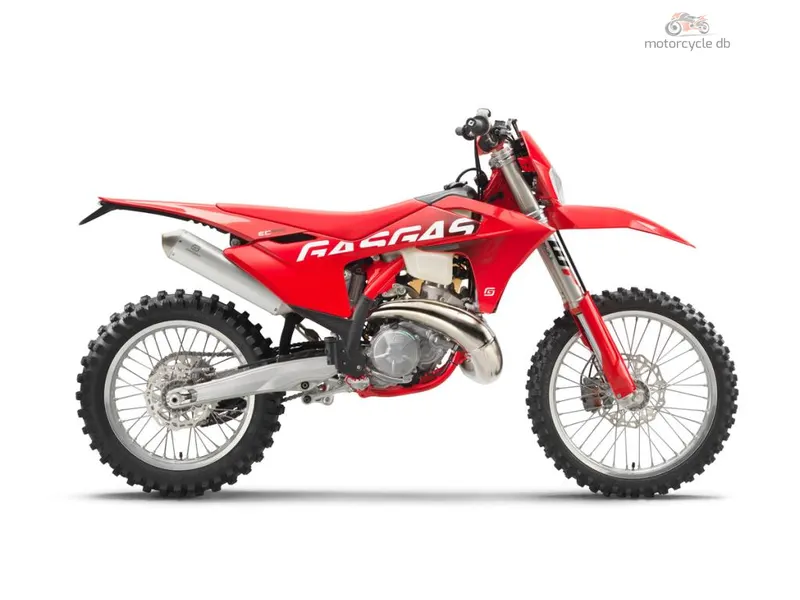

GAS GAS EC 250 - 2024 Specifications and Reviews
General information | |
| Type | Enduro / offroad |
| Year model | 2024 |
| Model name | GAS GAS EC 250 |
Engine and Transmission Specifications | |
| Driveline | X-Ring 5/8 x 1/4´ chain |
| Clutch | DDS wet multi-disc clutch, Braktec hydraulics |
| Transmission type | Chain (final drive) |
| Gearbox | 6-speed |
| Cooling system | Liquid |
| Lubrication system | 1:80 ration, electronic oil pp |
| Ignition | Continental EMS |
| Fuel system | Injection. 39 mm Dellortho throttle body |
| Valves per cylinder | 2 |
| Bore x stroke | 66.4 x 72.0 mm (2.6 x 2.8 inches) |
| Engine details | Counter balancer shaft |
| Type of engine | Single cylinder, two-stroke |
| Capacity: | 249.3 ccm (15.21 cubic inches) |
Brakes, suspension, Frame and wheels | |
| Wheels | Light aluminium spoke rim |
| Rear brakes | Single disc. Wave disc, 1-piston caliper |
| Diameter | 260 mm (10.2 inches) |
| Front brakes | Single disc. Wave floating disc, 2-piston caliper |
| Rear tire | 140/80-19 |
| Front tire | 90/90-21 |
| Rear wheel travel | 300 mm (11.8 inches) |
| Rear suspension | WP XACT Monoshock with linkage |
| Front wheel travel | 300 mm (11.8 inches) |
| Front suspension | WP XPLOR-USD, Ø 48 mm |
| Rake (fork angle) | 26.5° |
| Frame type | Central double-cradle-type 25CrMo4 steel |
| | |
Physical measures and capacities | |
| Fuel capacity | 8.50 litres (2.25 US gallons) |
| Wheelbase | 1480 mm (58.3 inches) |
| Ground clearance | 360 mm (14.2 inches) |
| Overall width | 810 mm (31.9 inches) |
| Overall length | 2145 mm (84.4 inches) |
| Overall height | 1235 mm (48.6 inches) |
| Seat height | 960 mm (37.8 inches) If adjustable, lowest setting. |
| Dry weight | 105.8 kg (233.2 pounds) |
Other specs | |
| Update specs | |
| Comments | From Spain. |
| Electrical | Li-ion battery. |
| Starter | Electric |
| Color options | Red/white |
