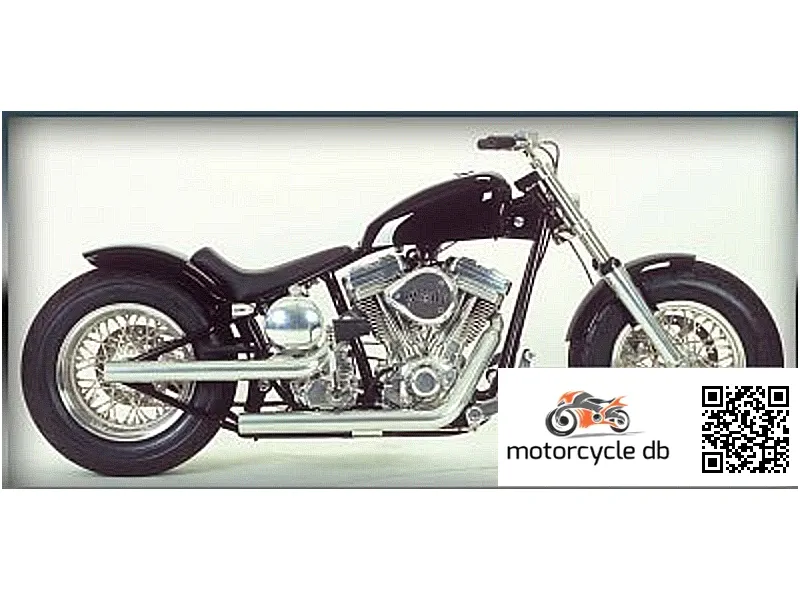

Exile Cycles Fat Tracker - 2012 Specifications and Reviews
2012
General information | |
| Category | Custom / cruiser |
| Year | 2012 |
| Model | Exile Cycles Fat Tracker |
| | |
Engine and Transmission Specifications | |
| Exhaust system | Exile 2.5´Monster drag pipes with baffles and polished billet tip |
| Driveline | JIMS 6-speed, clean-cut gears, polished case |
| Transmission type,final drive | Belt |
| Gearbox | 6-speed |
| Ignition | Crane HI-4 single fire ignition system |
| Fuel system | Carburettor. S and S Super G carb |
| Engine details | Total Performance 121 cinch engine |
| Engine type | V2, four-stroke |
| Capacity: | 1982.96 ccm (121.00 cubic inches) |
Brakes, suspension, Frame and wheels | |
| Rear brakes | Single disc. Exile brake rotor, 11.5´, stainless steel |
| Front brakes diameter | 292 mm (11.5 inches) |
| Front brakes | Single disc. Exile front brake caliper, 4-piston, |
| Rear tyre dimensions | 230/55-15 |
| Front tyre dimensions | 200/70-15 |
| Rear suspension | Works Performance adjustable length Softail shocks, black |
| Front suspension | Showa fork |
| Frame type | Softail frame, w swinger, pivot axle and rock-guard, 35 degree, no factory tank mounts. |
Physical measures and capacities | |
| Color options | Custom |
| Electrical | Yuasa YTX20HL-BS battery |
| Light | SJP single headlight, 3.5´, H4 halogen |
| Starter | Electric |
Other specs | |
| Comments | Optional polished engine, custom ergonomics, GP shift pattern, and more. Limited edition bike. Each unit engraved with sequential production number. |
| Instruments | Analog tach; LCD speedo |
| Oil capacity | 3.70 litres (0.24 quarts) |
| Fuel capacity | 15.90 litres (4.20 gallons) |
| Wheelbase | 1,537 mm (60.5 inches) |
| Ground clearance | 165 mm (6.5 inches) |
| Alternate seat height | 775 mm (30.5 inches) If adjustable, highest setting. |
| Seat height | 698 mm (27.5 inches) If adjustable, lowest setting. |
| Power/weight ratio | 0.6487 HP/kg |
| Dry weight | 205.0 kg (452.0 pounds) |
| Seat | Low-profile (sleek) or high-profile (plush) |
| Wheels | 17´forged aluminum. Silver or black. Optional BST carbon-fiber wheels. |
| Rear brakes diameter | 260 mm (10.2 inches) |
| Rear tyre | 190/70-ZR17 |
| Front tyre | 120/70-ZR17 |
| Rear wheel travel | 165 mm (6.5 inches) |
| Rear Suspension | Öhlins fully adjustable. 3 modes, dragster, cruiser, road racer. |
| Front wheel travel | 132 mm (5.2 inches) |
| Front Suspension | Öhlins Upside-down, fully adjustable fork |
| Rake (fork angle) | 25.0° |
| Cooling system | Liquid |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Bore x Stroke | 108.0 x 108.0 mm (4.3 x 4.3 inches) |
| Compression | 10.5:1 |
| Torque | 185.77 Nm (18.9 kgf-m or 137.0 ft.lbs) |
| Power | 133.00 Horsepower">HP (97.1 Kilowatt">kW)) |
| Capacity: | 1966.00 ccm (119.97 cubic inches) |
| Model | Ecosse The Heretic |
