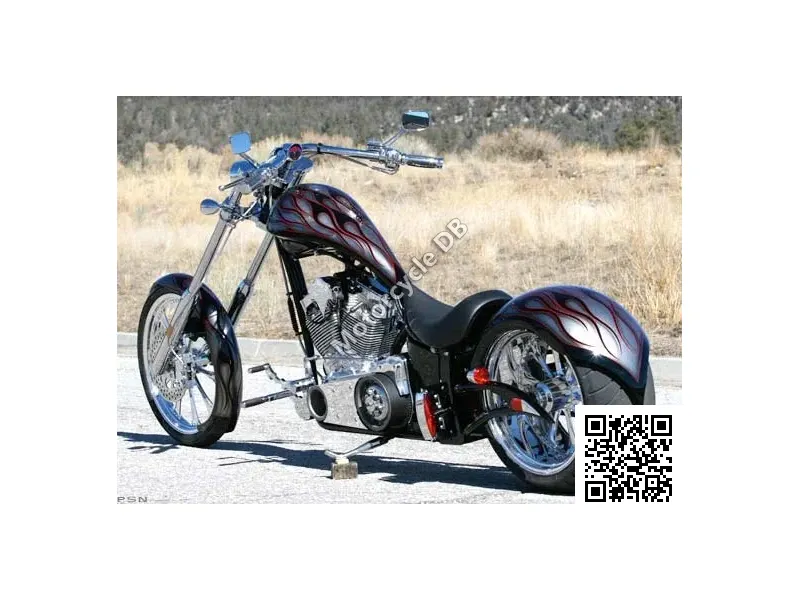

Big Bear Choppers Sled 114 EFI X-Wedge - 2009 Specifications and Reviews
The 2009 Big Bear Choppers Sled 114 EFI X-Wedge is a heavyweight custom cruiser designed for riders seeking raw power and classic styling. Its 114-cubic-inch S&S engine delivers impressive torque for aggressive acceleration, while the electronic fuel injection ensures reliable performance. Best known for aggressive aesthetics and commanding presence on the road.
2009
General information | |
| Category | Custom / cruiser |
| Year | 2009 |
| Model | Big Bear Choppers Sled 114 EFI X-Wedge |
Engine and Transmission Specifications | |
| Transmission typefinal drive | Chain |
| Gearbox | 6-speed |
| Cooling system | Liquid |
| Lubrication system | S and S Dual Gerotor oil pump |
| Fuel system | Injection. S and S Closed-Loop Electronic Fuel Injection |
| Bore x stroke | 104.8 x 108.0 mm (4.1 x 4.3 inches) |
| Torque | 153.22 |
| Power | 97.00 |
| Stroke | 4 |
| Engine type | V2 |
| Capacity: | 1868.24 ccm (114.00 cubic inches) |
Physical measures and capacities | |
| Wheelbase | 2,235 mm (88.0 inches) |
| Overall length | 2,921 mm (115.0 inches) |
| Seat height | 508 mm (20.0 inches) If adjustable, lowest setting. |
| Dry weight | 317.5 kg (700.0 pounds) |
| | |
Big Bear Choppers Sled 114 EFI X-Wedge dimensions and frame | |
| Rear brakes | Single disc. BBC P.M. 4-piston calipers |
| Front brakes | Single disc. P.M. 4-piston calipers |
| Rear tyre dimensions | 300/80-18 |
| Front tyre dimensions | 90/80-21 |
| Rear suspension travel | 76 mm (3.0 inches) |
| Rear suspension | Progressive |
| Front suspension | BBC Smooth Mount Hidden Axle |
| Trail | 95 mm (3.8 inches) |
| Rake (fork angle) | 40.0° |
| Frame type | BBC Sled Softail |
| | |
Speed and acceleration | |
| Power/weight ratio | 0.3055 HP/kg |
Other specs | |
| Maintenance | Find parts, fluids, filters, maintenance tools and service items on eBay |
| Color options | Gross Black, satin black, charcoal, silver, black cherry, candy red, firecracker red, orange, blue. Various paint schemes. |
| Fuel capacity | 12.30 litres (3.25 gallons) |
Performance Profile & Rider Fit
97 hp
Peak Power
5.8s
0-60 mph
Best For
Track10%
City30%
Cornering20%
Daily Riding45%
Touring40%
Passenger30%
Rider Profile
| Best For | This is a machine best suited to riders who already have solid experience handling long, heavy, low-slung customs with extreme rake and a fat rear tire. |
| Purpose | It exists purely as a boulevard cruiser and show-stopping custom chopper, built for style, sound, and presence rather than outright performance or practicality. |
| Rider Fit | The stretched 115-inch length, 40-degree rake, and 700-pound dry weight demand strong low-speed control and confident slow-maneuvering skills, though the low 20-inch seat height keeps it accessible for shorter riders. |
| Character | It has a big, torquey 114ci S&S V-twin personality with a distinctive rumble, favoring relaxed straight-line cruising and dramatic looks over cornering agility. |
| Not Ideal For | This is not the bike for riders wanting nimble cornering, off-road capability, or a nimble commuter for tight city traffic. |
Character map is an editorial estimate based on this bike's specifications, not a lab-tested measurement.
