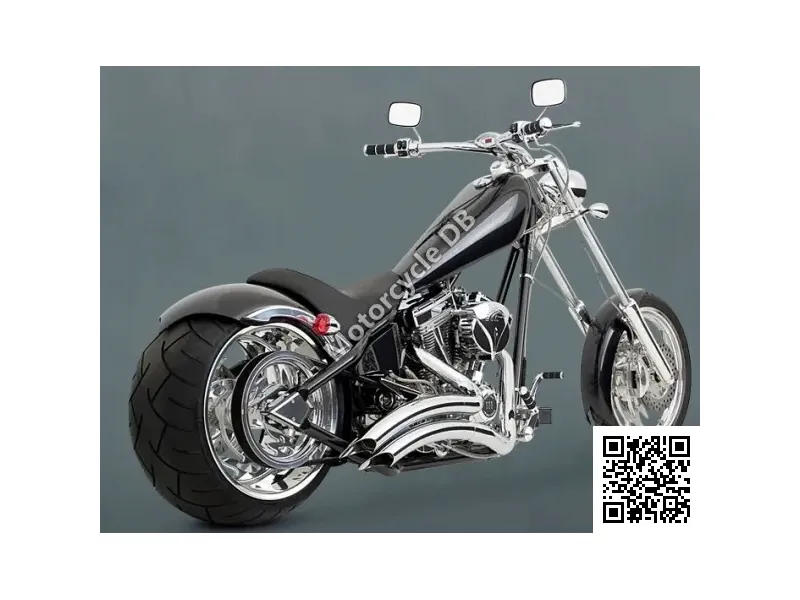

American IronHorse Texas Chopper - 2009 Specifications and Reviews
The 2009 American IronHorse Texas Chopper is a low-slung custom cruiser designed for riders seeking an authentic American chopper aesthetic with aggressive styling and extended geometry. Known for its stretched frame, extreme rake angle, and classic cruiser proportions, it delivers modest power with emphasis on presence over performance. Best suited for leisurely cruising and show appeal rather than spirited riding.
General information | |
| Category | Custom / cruiser |
| Year | 2009 |
| Model | American IronHorse Texas Chopper |
Engine and Transmission Specifications | |
| Exhaust system | 2-into-1 Dyno tuned exhaust system with integral heat shields |
| Clutch | Chrome hydraulic ´Easy Pull´ |
| Transmission type,final drive | Belt |
| Gearbox | 6-speed |
| Cooling system | Air |
| Fuel control | OHV |
| Fuel system | Carburettor |
| Compression | 9.5:1 |
| Torque | 155.94 Nm (15.9 kgf-m or 115.0 ft.lbs) |
| Power | 110.00 |
| Engine type | V2, four-stroke |
| Capacity: | 1819.08 ccm (111.00 cubic inches) |
Brakes, suspension, Frame and wheels | |
| Rear brakes | Single disc. 4-piston polished calipers |
| Front brakes | Single disc. 4-piston polished calipers |
| Rear tyre dimensions | 300/40-18 |
| Front tyre dimensions | 90/90-21 |
| Rear suspension | A-frame swing arm |
| Front suspension | Telescopic |
| Rake (fork angle) | 42.0° |
| Frame type | Soft-style frame with 4 inch top tube stretch and 8 inch stretched single downtube |
| | |
Physical measures and capacities | |
| Fuel capacity | 13.00 litres (3.43 gallons) |
| Power/weight ratio | 0.3470 HP/kg |
| Dry weight | 317.0 kg (698.9 pounds) |
Other specs | |
| Maintenance | Find parts, fluids, filters, maintenance tools and service items on eBay |
| Starter | Electric |
Performance Profile & Rider Fit
110 hp
Peak Power
5s
0-60 mph
Best For
Track10%
City25%
Cornering15%
Daily Riding35%
Touring40%
Passenger30%
Rider Profile
| Best For | This is a machine best suited to confident, experienced riders who understand the quirks of long, raked-out custom choppers. |
| Purpose | Built as a bold style-and-image cruiser, it's meant for boulevard cruising, shows, and making a statement rather than efficient point-to-point riding. |
| Rider Fit | The extreme 42-degree rake, stretched frame, and huge 300mm rear tyre demand strong low-speed handling skills and deliberate, physical steering input. |
| Character | Loud, torquey, and visually dramatic, it rewards riders who want a raw, high-torque V-twin soundtrack and head-turning presence over outright agility. |
| Not Ideal For | It's not a good fit for new riders, tight urban commuting, off-road use, or anyone wanting nimble, quick-flicking handling. |
Character map is an editorial estimate based on this bike's specifications, not a lab-tested measurement.
