What category is the 2016 Zero Engineering Type 5 Open Primary?

The 2016 Zero Engineering Type 5 Open Primary has a Category of Custom / cruiser.

What is the engine size of the 2016 Zero Engineering Type 5 Open Primary?

The 2016 Zero Engineering Type 5 Open Primary has a Capacity: of 1570.00 ccm (95.80 cubic inches).

What type of engine does the 2016 Zero Engineering Type 5 Open Primary have?

The 2016 Zero Engineering Type 5 Open Primary has a Engine type of V2, four-stroke.

Is the 2016 Zero Engineering Type 5 Open Primary air cooled or liquid cooled?

The 2016 Zero Engineering Type 5 Open Primary has a Cooling system of Air.

How many gears does the 2016 Zero Engineering Type 5 Open Primary have?

The 2016 Zero Engineering Type 5 Open Primary has a Gearbox of 5-speed.

How much does the 2016 Zero Engineering Type 5 Open Primary weigh?

The 2016 Zero Engineering Type 5 Open Primary has a Weight incl. oil, gas, etc of 250.0 kg (551.2 pounds).

What is the seat height of the 2016 Zero Engineering Type 5 Open Primary?

The 2016 Zero Engineering Type 5 Open Primary has a Seat height of 660 mm (26.0 inches) If adjustable, lowest setting..

Zero Engineering Type 5 Open Primary - 2016 Specifications and Reviews

Name: 2016 Zero Engineering Type 5 Open Primary
Brand: Zero Engineering

The 2016 Zero Engineering Type 5 Open Primary is a lightweight, minimalist cruiser tailored for riders seeking vintage style and simplicity. Its rigid rear suspension, modest 660mm seat height, and carbureted engine deliver accessible, low-maintenance riding character. Known for authentic retro aesthetics and approachable handling, it appeals to casual enthusiasts valuing classic design over modern performance.

⇄ Compare against another bike 📅 All Years

2016

❮❯

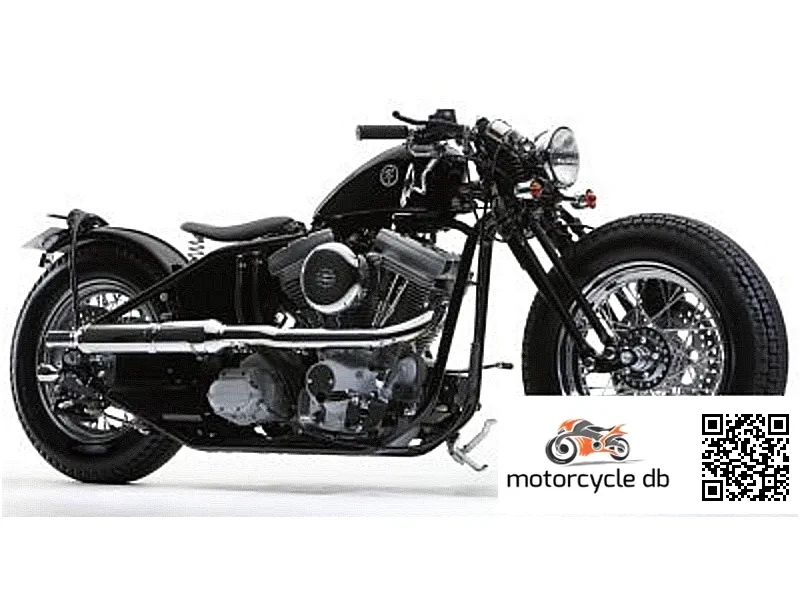

Zero Engineering Type 5 Open Primary 2016 50292 Thumb

Add/Upload pictures for this motorcycle

General information
Category	Custom / cruiser
Year	2016
Model	Zero Engineering Type 5 Open Primary
Engine and Transmission Specifications
Driveline	Haraley Davidson transmission
Clutch	Wet multiplate coil spring
Transmission type,final drive	Chain
Gearbox	5-speed
Cooling system	Air
Ignition	Mircotech
Fuel control	Overhead Valves (OHV)
Fuel system	Carburettor. Injection in Japan
Valves per cylinder	4
Bore x Stroke	88.8 x 108.0 mm (3.5 x 4.3 inches)
Engine type	V2, four-stroke
Capacity:	1570.00 ccm (95.80 cubic inches)

Brakes, suspension, Frame and wheels
Seat	Single person leather seat, various colors
Rear brakes	Single disc. Hydraulic
Front brakes	Single disc. Hydraulic
Rear tyre	5.00-16
Front tyre	5.00-16
Rear Suspension	Rigid
Front Suspension	Springer fork
Rake (fork angle)	33.2°
Frame type	Gooseneck frame

Physical measures and capacities
Oil capacity	2.80 litres (0.18 quarts)
Fuel capacity	8.40 litres (2.22 gallons)
Wheelbase	1,600 mm (63.0 inches)
Ground clearance	100 mm (3.9 inches)
Overall width	720 mm (28.3 inches)
Overall length	2,300 mm (90.6 inches)
Overall height	930 mm (36.6 inches)
Seat height	660 mm (26.0 inches) If adjustable, lowest setting.
Weight incl. oil, gas, etc	250.0 kg (551.2 pounds)
Other specs
Maintenance	Find parts, fluids, filters, maintenance tools and service items on eBay
Comments	Model ID: JRK in the US. Zero Engineering is a Japanese brand.
Instruments	Compact analogue
Starter	Electric
Color options	Black, white, dark green

Performance Profile & Rider Fit

7.5s

0-60 mph (est.)

Best For

Track5%

City35%

Cornering20%

Daily Riding30%

Touring15%

Passenger5%

Rider Profile

Best For	Best suited to experienced riders who understand the quirks of a rigid-frame, springer-fork custom chopper with no rear suspension.
Purpose	Built purely as a low-slung, hand-built Harley-Davidson-powered style statement rather than a performance or practical machine.
Rider Fit	The very low 660mm seat height and long, stretched riding position suit taller riders, but the rigid rear end demands a tolerance for harsh, jarring ride quality.
Character	A boutique Japanese-built custom cruiser that trades comfort, agility, and range for radical minimalist style and old-school chopper attitude.
Not Ideal For	Not for riders seeking comfort, cornering agility, long-distance touring range, passenger capability, or any off-road use.

Character map is an editorial estimate based on this bike's specifications, not a lab-tested measurement.

Rider Fit Visualizer

2016 Zero Engineering Type 5 Open Primary Rider Ergonomics Assessment

Your height

Inseam (optional)

Units

Calculated in your browser only - your height/inseam are never sent to our servers.

Feet:

At 660mm, a rider of 175cm with a 79cm (estimated) inseam will reach the ground with both feet flat on the 2016 Zero Engineering Type 5 Open Primary, with a cramped knee angle of around 70 degrees and an upright riding position.

Data quality: measured. Assumes about 30mm of suspension sag once seated (a typical street-bike rule of thumb - stiffer or softer suspension will vary). This is an approximation from category-typical geometry and generic body proportions, not a measurement of this specific bike or you - sit on it before you buy.
