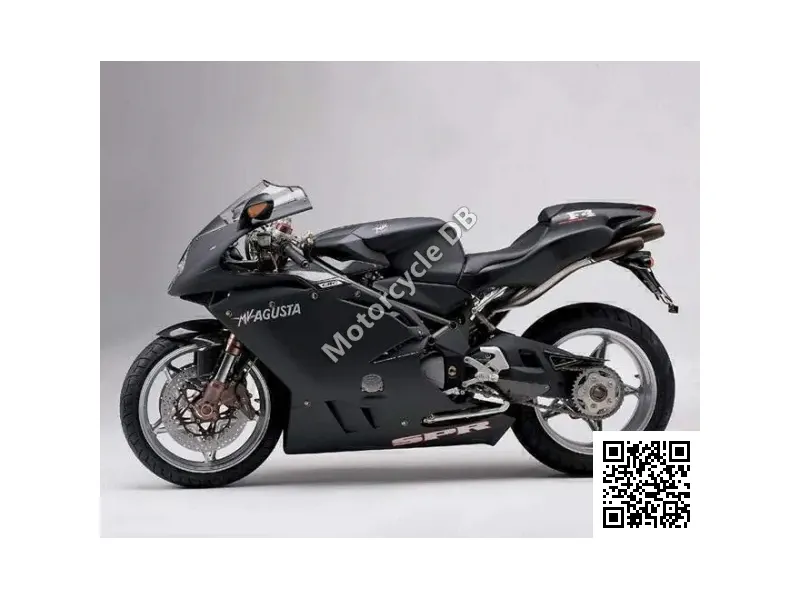

MV Agusta F4 750 SPR - 2006 Specifications and Reviews
2006
General information | |
| Category | Sport |
| Year | 2006 |
| Model | MV Agusta F4 750 SPR |
Engine and Transmission Specifications | |
| Clutch | Wet, multi - disc |
| Gearbox | 6-speed |
| Cooling system | Liquid |
| Starter | Electric |
| Fuel control | DOHC |
| Valves per cylinder | 4 |
| Fuel system | Injection |
| Bore x stroke | 73.7 x 43.2 mm (2.9 x 1.7 inches) |
| Compression | 13.0:1 |
| Power | 143.89 |
| Stroke | 4 |
| Engine type | In-line four |
| Capacity: | 748.93 ccm (45.70 cubic inches) |
| | |
Physical measures and capacities | |
| Wheelbase | 1,398 mm (55.0 inches) |
| Ground clearance | 130 mm (5.1 inches) |
| Dry weight | 191.0 kg (421.1 pounds) |
| | |
MV Agusta F4 750 SPR dimensions and frame | |
| Rear brakes | Single disc |
| Front brakes | Double disc |
| Rear tyre dimensions | 190/50-ZR17 |
| Front tyre dimensions | 120/65-ZR17 |
| Rear suspension | Progressive, single shock absorber with rebound compression damping and spring preload |
| Front suspension | Upside-down telescopic hydraulic fork with rebound-compression damping and spring preload adjustment |
| Trail | 98 mm (3.9 inches) |
| Frame type | CrMo Steel tubular trellis (TIG welded) and aluminium alloy |
Speed and acceleration | |
| Power/weight ratio | 0.7534 HP/kg |
| Top speed | 285.8 km/h (177.6 mph) |
Other specs | |
| Fuel capacity | 17.41 litres (4.60 gallons) |
